Rear SUBFRAME Bush (G1870578): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the rear subframe.
Refer to: REAR SUBFRAME - PROJECT 8
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

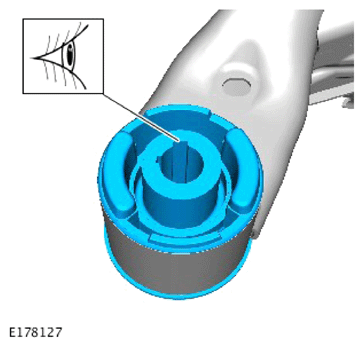

Note the orientation of the slots prior to removing the bush.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

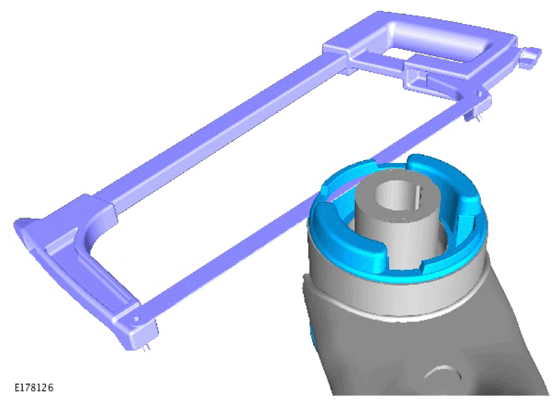

Using a suitable handsaw, carefully remove the lip from the top of the bush.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

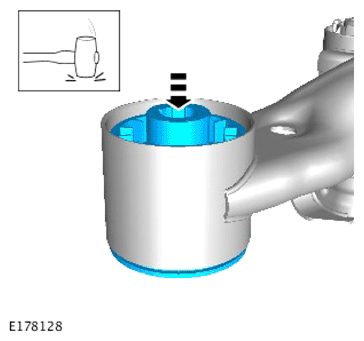

Using a suitable tool remove the rear subframe bush.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

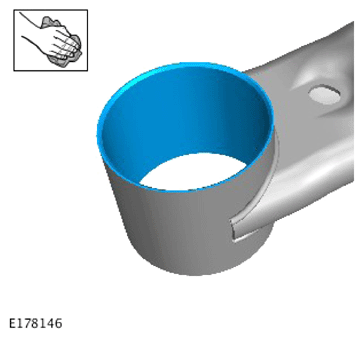

Clean and inspect the components for deterioration.
