Rear SUBFRAME Bush (G1870578): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

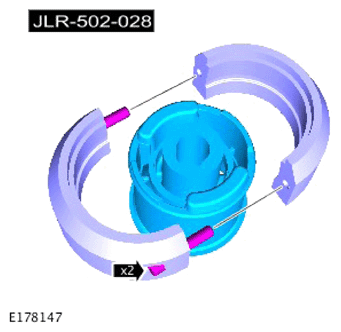

  1. G14012373Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the special tool to the bush.

    Special Tool(s): JLR-502-028

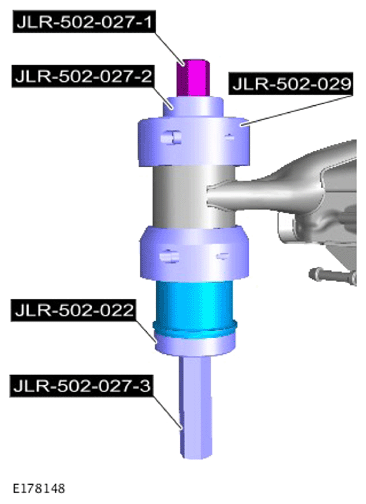

  2. G14012374Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the bush to the rear subframe using the special tools.

    Special Tool(s): JLR-502-027-3  , JLR-502-022  , JLR-502-029  , JLR-502-027-2  , JLR-502-027-1

  3. CAUTION: Failure to follow this instruction may result in damage to the component.

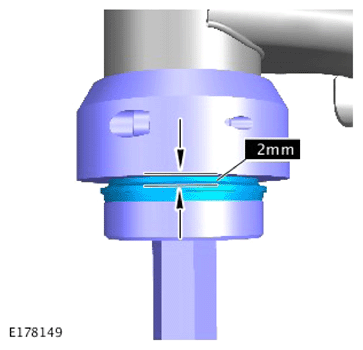

    G14012375Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Do not allow the lower edge of the bush to contact the special tool. Make sure a 2 mm gap is visible.

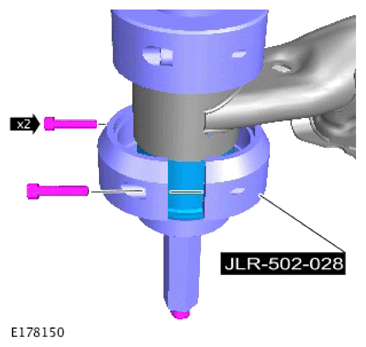

  4. G14012376Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the special tool.

    Special Tool(s): JLR-502-028

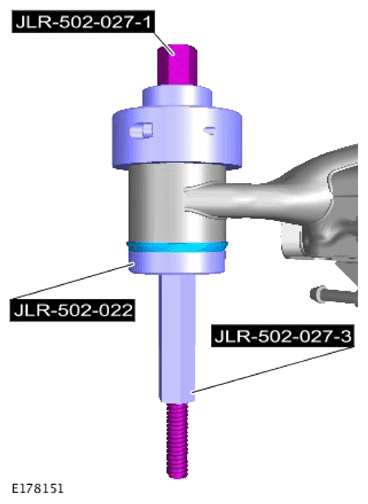

  5. G14012377Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Using the special tool fully install the bush.

    Special Tool(s): JLR-502-027-1  , JLR-502-022  , JLR-502-027-3

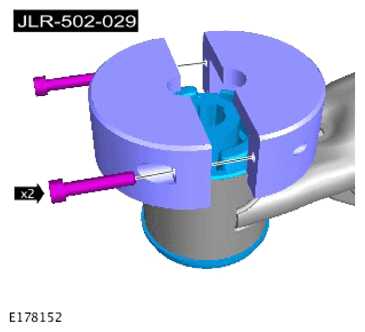

  6. G14012378Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the special tools.

    Special Tool(s): JLR-502-029

  7. Install the rear subframe.

    Refer to: REAR SUBFRAME - PROJECT 8

  8. Connect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
