Front SUBFRAME - V6 S/C 3.0L Petrol (G1817269): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some components shown removed for clarity.
  • Removal steps in this procedure may contain installation details.
  • Right hand drive illustration(s) shown, Left hand drive is similar.

The following step(s) applies to:

All vehicles

  1. Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
  2. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

    Refer to: LIFTING

  3. Refer to: RADIATOR SPLASH SHIELD
  4. Refer to: ENGINE UNDERSHIELD
  5. Refer to: ENGINE COVER - V6 S/C 3.0L PETROL
  6. Refer to: AIR CLEANER OUTLET PIPE T-CONNECTOR
  7. NOTE: Vehicles with all wheel drive.

    Refer to: FRONT HALFSHAFT

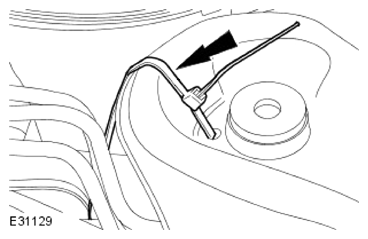

  8. G14012201Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Secure the radiator assembly.

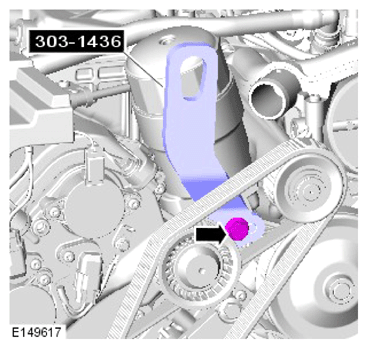

  9. G14012202Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Special Tool(s): 303-1436
    • Torque  : 40Nm
  10. CAUTION:
    • Support the engine on a jack. The angle may need to be adjusted during this procedure.
    • Make sure to protect the paintwork.

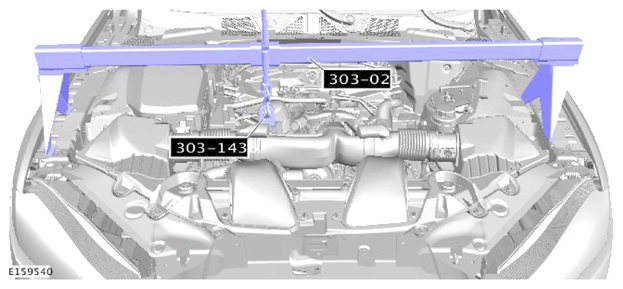

    G14012203Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Special Tool(s): 303-021
    • Special Tool(s): 303-1436

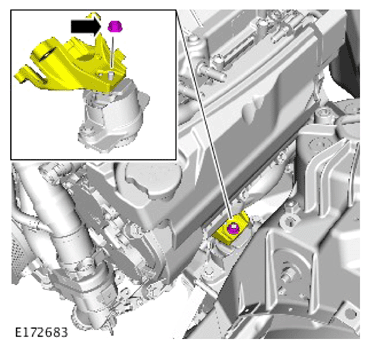

  11. G14012204Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 60Nm

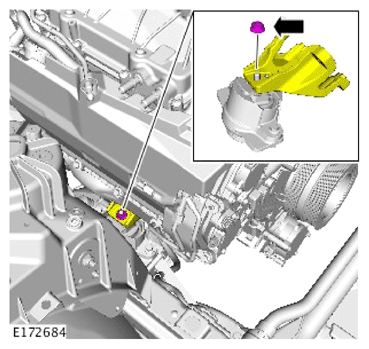

  12. G14012205Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 60Nm

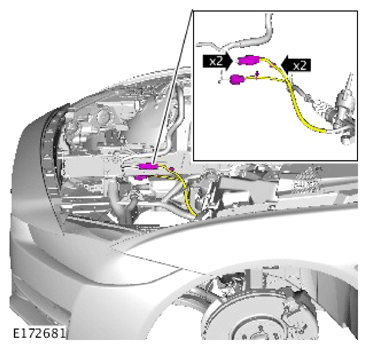

  13. G14012206Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    The following step(s) applies to:

    Vehicles with 8 speed automatic transmission

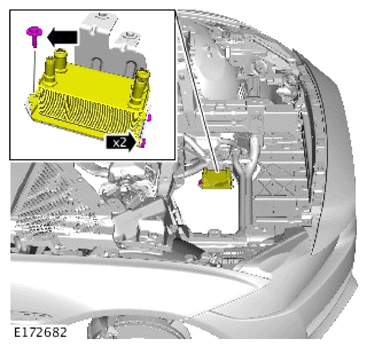

  14. G14012207Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 9Nm

    The following step(s) applies to:

    All vehicles

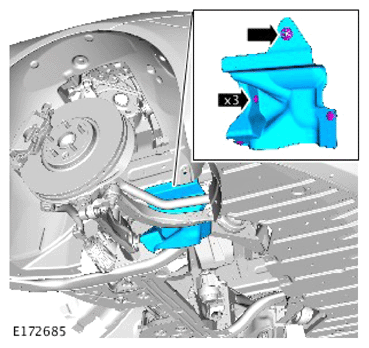

  15. G14012208Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

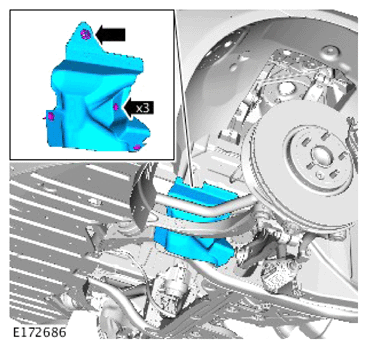

  16. G14012209Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

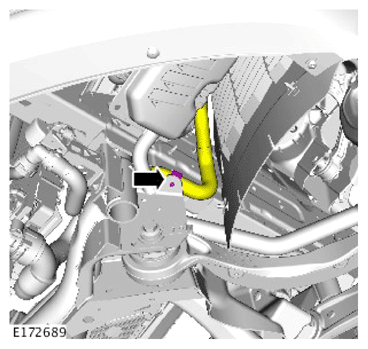

    The following step(s) applies to:

    Vehicles with fuel fired booster heater

  17. G14012210Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    The following step(s) applies to:

    All vehicles

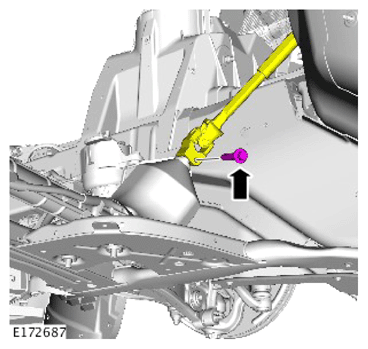

  18. CAUTION: Discard the bolt.
    G14012211Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Renew Part: Steering column lower shaft lower bolt  Quantity: 1  .

    Torque  : 30Nm

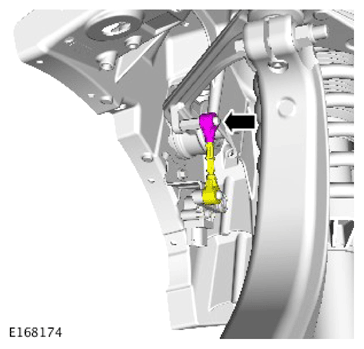

  19. NOTE: Repeat the step for the other side.
    G14012212Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

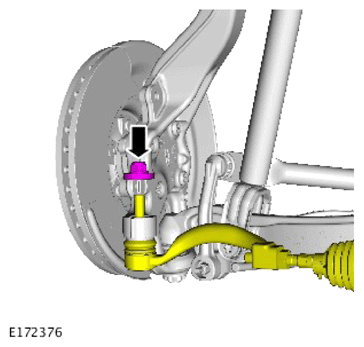

  20. CAUTION: Discard the nut.
    NOTE: Repeat the step for the other side.
    G14012213Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Renew Part: Tie-rod end nut  Quantity: 2  .

    Torque  : 133Nm

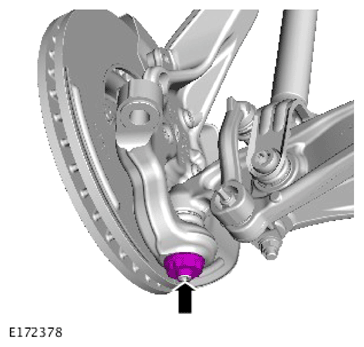

  21. NOTE:
    • Loosen but do not fully remove.
    • Repeat the step for the other side.
    G14012214Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 185Nm

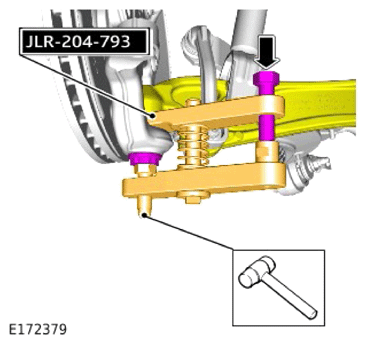

  22. NOTE: Repeat the step for the other side.
    G14012215Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Special Tool(s): JLR-204-793

    Torque  : 60Nm

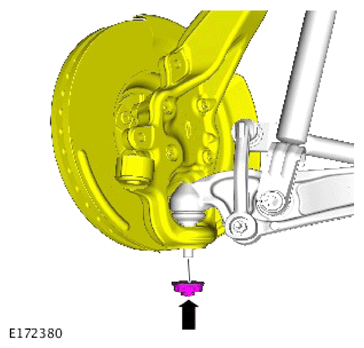

  23. CAUTION: Discard the nut.
    NOTE: Repeat the step for the other side.
    G14012216Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Renew Part: Wheel knuckle nut  Quantity: 2  .

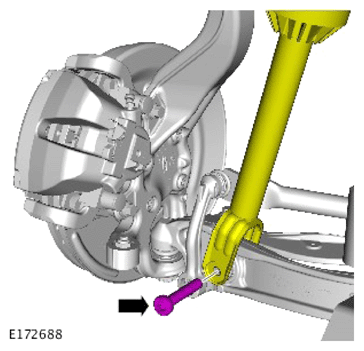

  24. CAUTION: Discard the bolt.
    NOTE: Repeat the step for the other side.
    G14012217Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Renew Part: Shock absorber lower bolt  Quantity: 2  .

    Torque  : 170Nm

  25. CAUTION: Discard the bolts.
    NOTE: Do not disassemble further if the component is removed for access only.

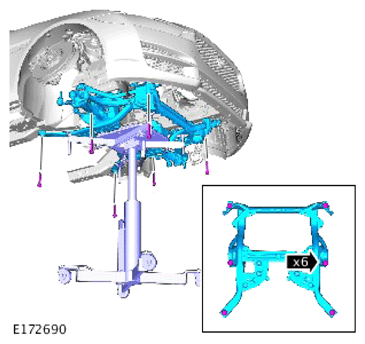

    G14012218Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    General Equipment: Transmission jack

    Renew Part: Front subframe to body bolts  Quantity: 6  .

    Torque

    Front retaining bolts

    Stage 1: 100Nm

    Stage 2: 180°

    Centre retaining bolts

    Stage 1: 100Nm

    Stage 2: 180°

    Rear retaining bolts

    Stage 1: 80Nm

    Stage 2: 60°

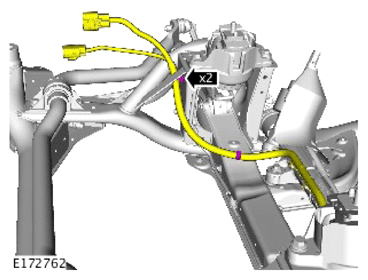

  26. G14012219Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

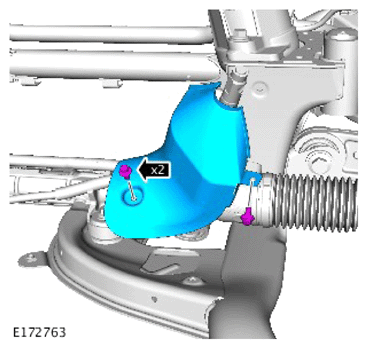

  27. G14012220Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 9Nm

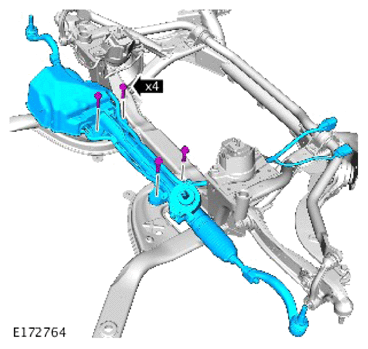

  28. CAUTION: Discard the bolts.
    G14012221Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Renew Part: Steering gear bolts  Quantity: 4  .

    Torque

    Stage 1: 30Nm

    Stage 2: 60°

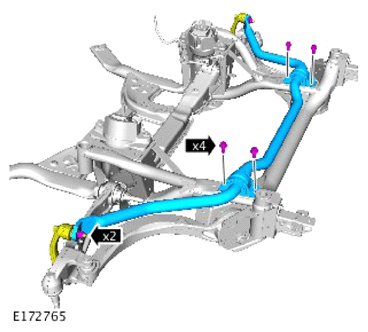

  29. CAUTION: Discard the nuts.
    G14012222Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Renew Part: Stabilizer bar link retaining nut(s)  Quantity: 4  .

    Torque

    Retaining nuts: 48Nm

    Retaining bolts: 60Nm

  30. CAUTION: Nuts must be tightened with vehicle at normal ride height.
    NOTE: Discard the nuts and bolts.

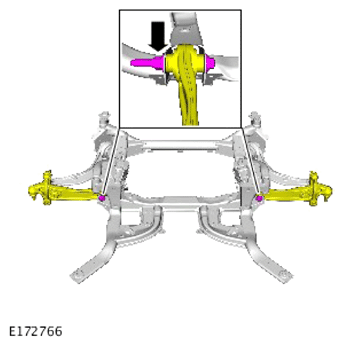

    G14012223Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Renew Part: lower control arm nut(s) and bolt(s)  Quantity: 2  .

    Torque

    Stage 1: 100Nm

    Stage 2: 180°

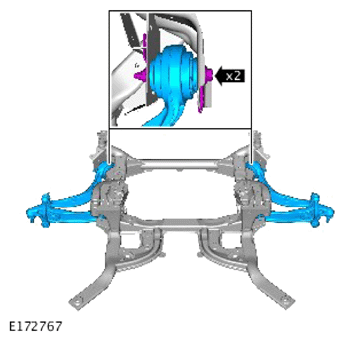

  31. CAUTION: Nuts must be tightened with vehicle at normal ride height.
    NOTE: Discard the nuts and bolts.
    G14012224Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Renew Part: Upper control arm to subframe nuts and bolts  Quantity: 2  .

    Torque

    Stage 1: 100Nm

    Stage 2: 180°

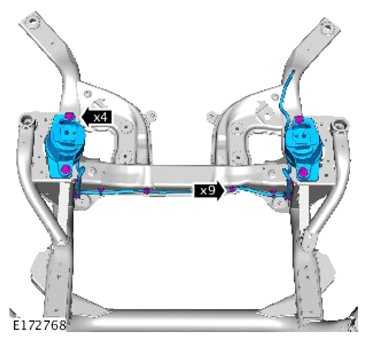

  32. G14012225Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 47Nm

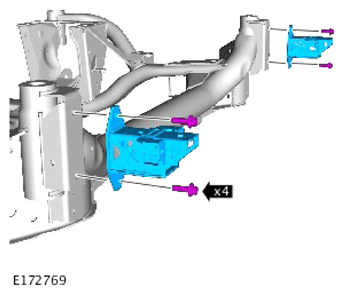

  33. G14012226Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 9Nm

    The following step(s) applies to:

    Vehicles with 8 speed automatic transmission

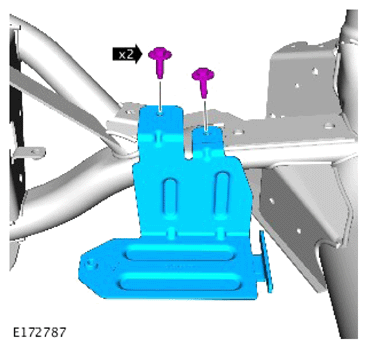

  34. G14012227Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 9Nm
