Front SUBFRAME - Project 8 (G2248484): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustration showing certain components removed to provide extra clarity.

Disconnect the battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD - PROJECT 8
Remove the transmission undershield.
Refer to: TRANSMISSION UNDERSHIELD - PROJECT 8
Remove both front halfshafts.
Refer to: FRONT HALFSHAFT
Remove the air filter outlet pipe t-connector.
Refer to: AIR FILTER OUTLET PIPE T-CONNECTOR
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

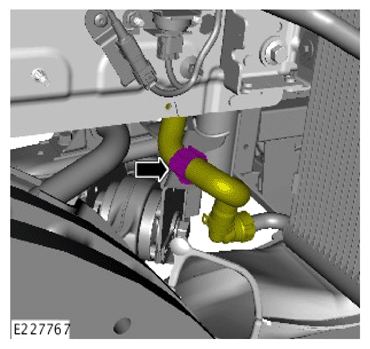

Release the coolant hose clip from the subframe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

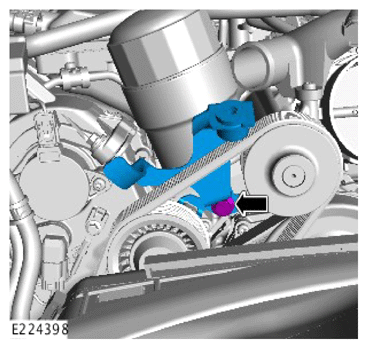

Remove the bolt and remove the air pipe bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

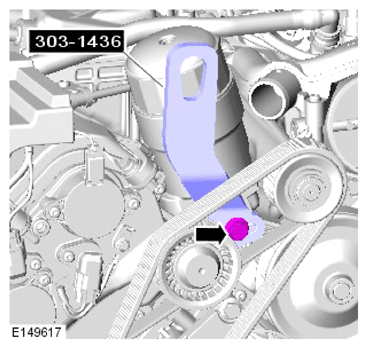

Install the special tool.

Special Tool(s): 303-1436

Torque : 40Nm
CAUTION: Make sure to protect the paintwork.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

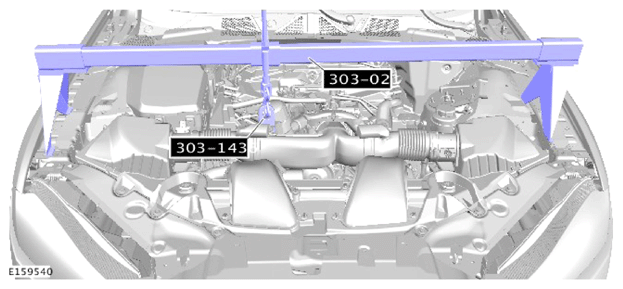

Install the special tool to the position illustrated.

Special Tool(s): 303-021 , 303-1436
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

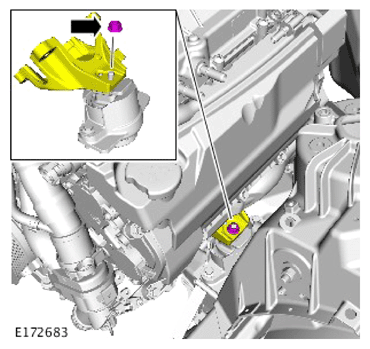

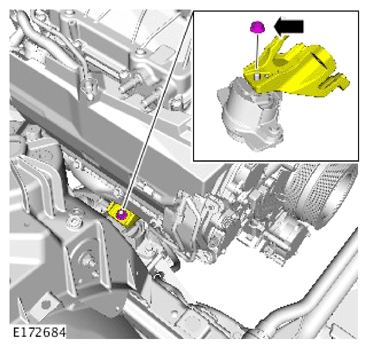

Remove and discard the engine mount to engine bracket nut.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the engine mount to engine bracket nut.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

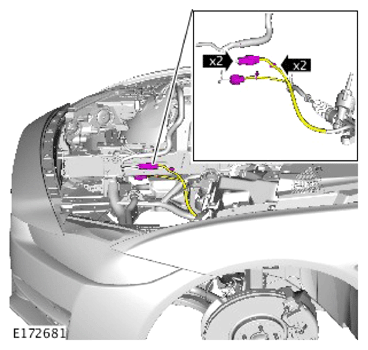

Disconnect the steering gear wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

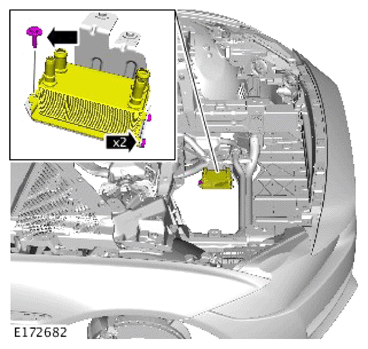

Remove the 3 bolts and release the transmission oil cooler from its mounting bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

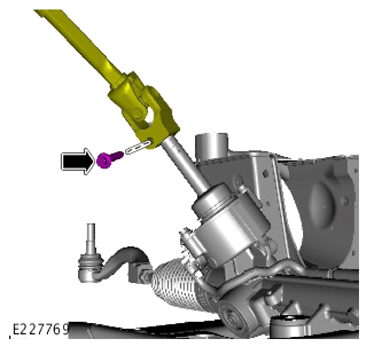

- Remove and discard the bolt.
- Disconnect the steering column joint from the steering gear.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

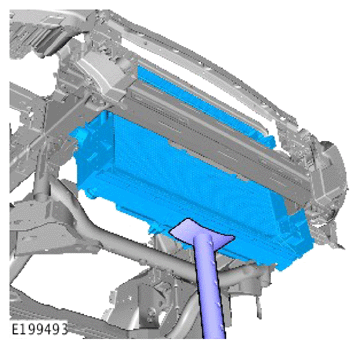

Using a suitable stand, support the cooling module.

General Equipment: Vehicle/axle stands
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

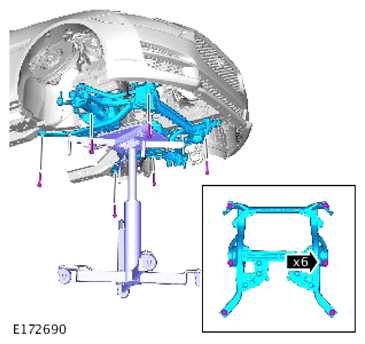

- Using a transmission jack, support the front subframe.
  General Equipment: Transmission jack
- Remove and discard the 6 bolts.
- Carefully remove the subframe.
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

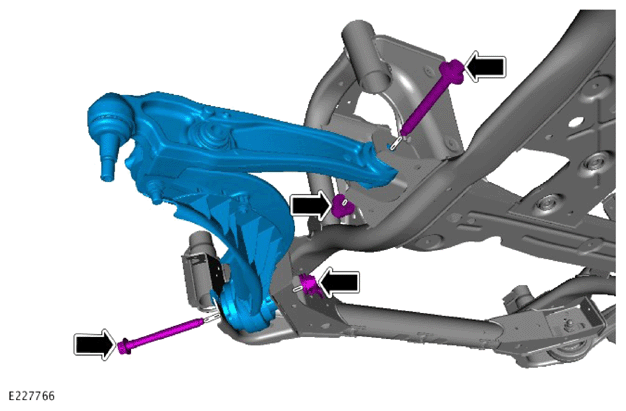

- Remove the 2 lower control arm assembly nuts and bolts.
- Remove the lower control arm assembly.
- Repeat this step for the other side.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

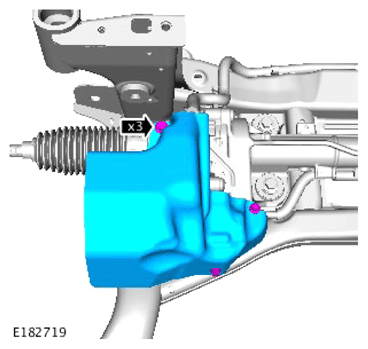

Remove the 3 bolts and remove the steering gear right side heat shield.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

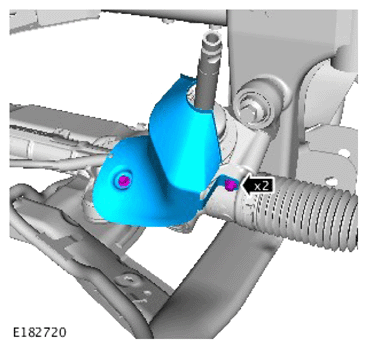

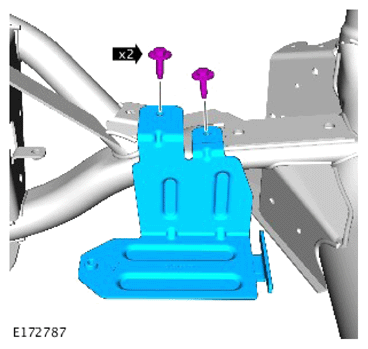

Remove the 2 bolts and remove the steering gear left side heat shield.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

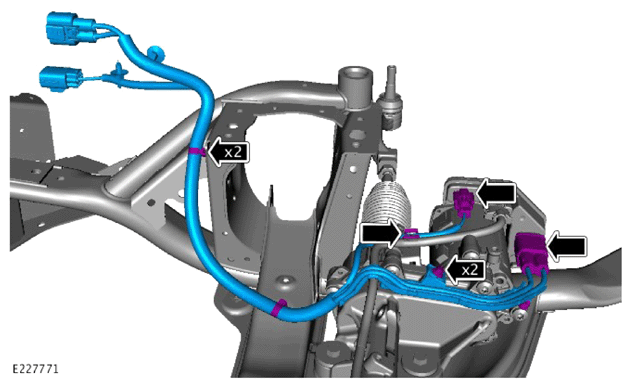

- Disconnect the 2 electrical connectors.
- Remove the 2 bolts.
- Release the 3 clips.
- Remove the steering gear wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

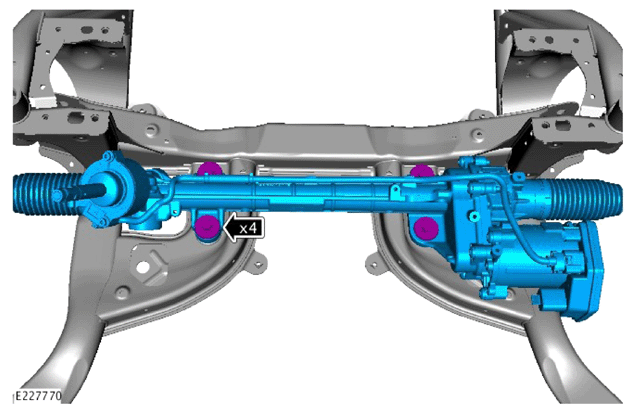

- Remove and discard the 5 steering gear bolts.
- Remove the steering gear.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

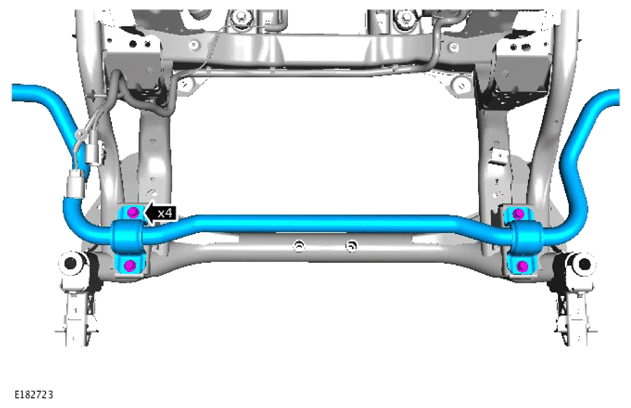

Remove the 4 bolts and remove the stabilizer bar.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

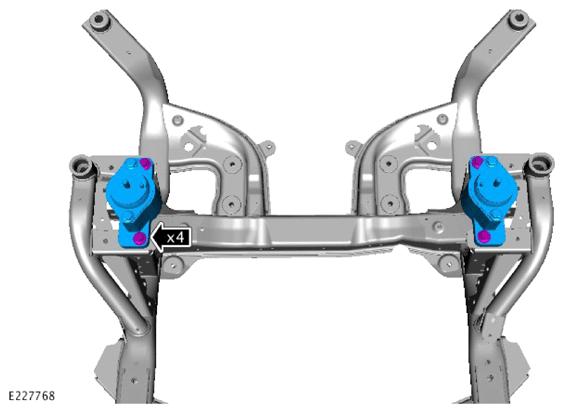

Remove both the engine mounts from the subframe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

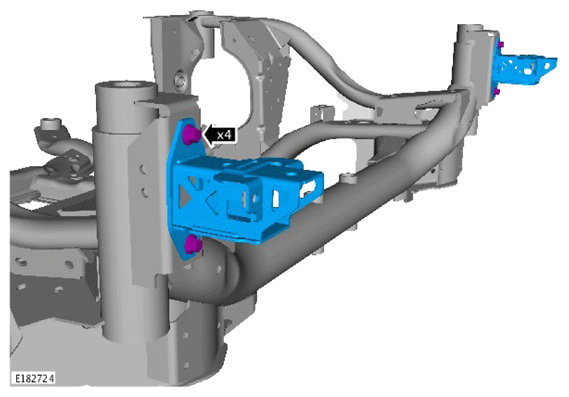

Remove the 4 bolts and remove the radiator mounting brackets.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 2 bolts and remove the transmission oil cooler mounting bracket.
