Front SUBFRAME - INGENIUM I4 2.0L Petrol (G2030532): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustration showing certain components removed to provide extra clarity.

The following step(s) applies to:

All vehicles

Disconnect the battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Remove the engine cover.
Refer to: ENGINE COVER - INGENIUM I4 2.0L PETROL
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING

General Equipment: 2 post lift
Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD
Remove the front bumper
Refer to: FRONT BUMPER - PROJECT 8
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

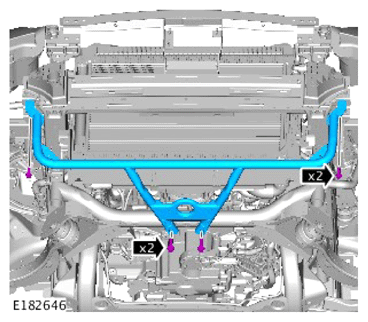

Remove the radiator protection bar.

The following step(s) applies to:

Hot climate vehicles
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

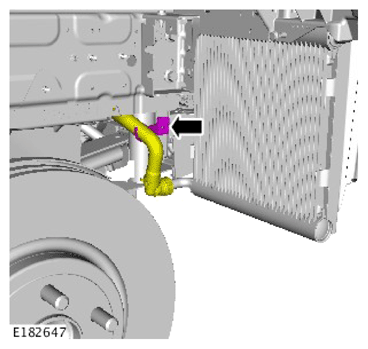

Release the coolant pipe bracket from the subframe.

The following step(s) applies to:

All vehicles
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

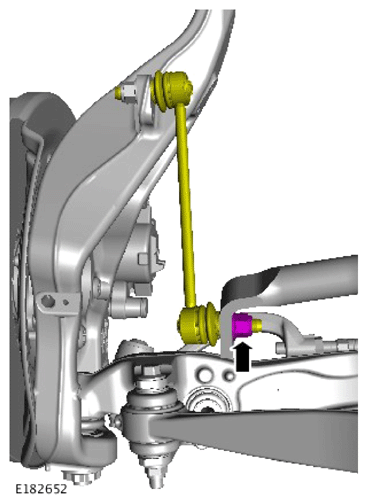

Disconnect both the stabilizer bar link lower ball joints and discard the nuts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

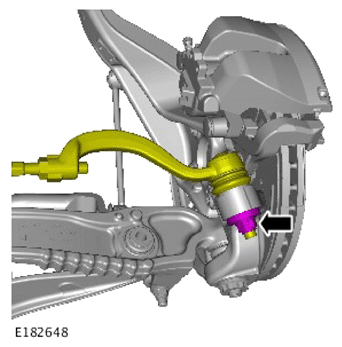

Disconnect both the tie rod end ball joints and discard the nuts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

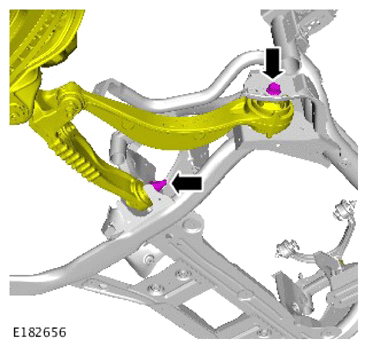

Disconnect all the lower suspension arms from the subframe and discard the nuts and bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

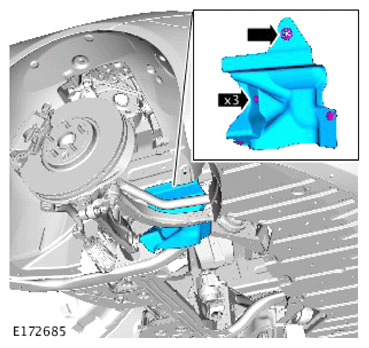

Remove both the splash shields.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

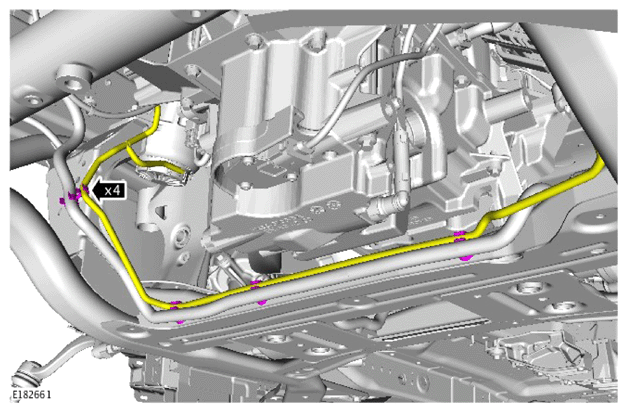

Release the engine mount vacuum pipe.
Lower the vehicle on the lift to an appropriate working height.
CAUTION: Make sure to protect the paintwork.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

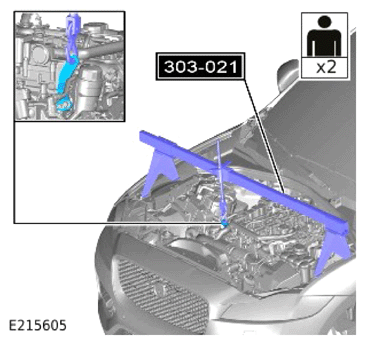

Install the special tool.

Special Tool(s): 303-021
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

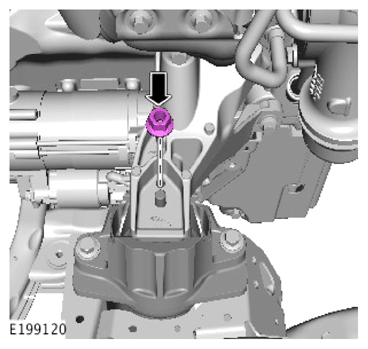

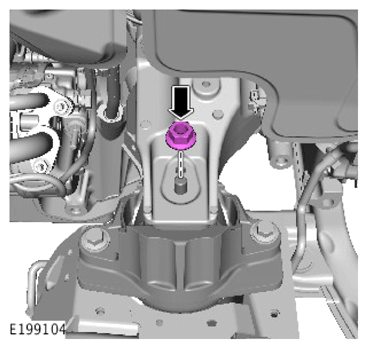

Remove and discard the engine mount to engine bracket nut.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the engine mount to engine bracket nut.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

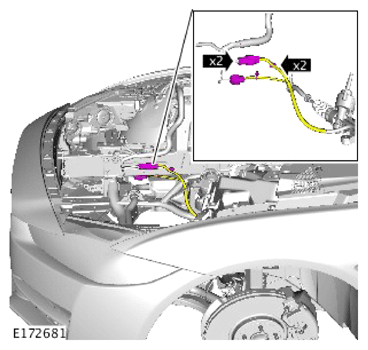

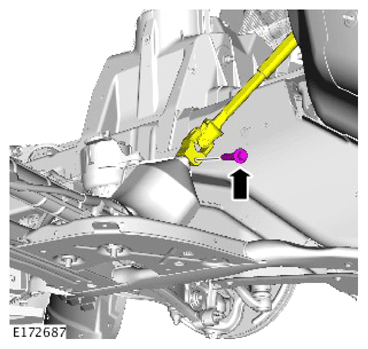

Disconnect the steering gear wiring harness.
Raise the vehicle on the lift to an appropriate working height.
The following step(s) applies to:

Vehicles with automatic transmission
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

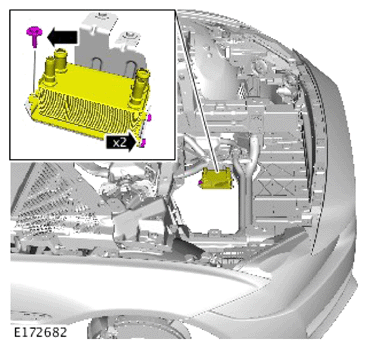

Release the transmission oil cooler from its mounting bracket

The following step(s) applies to:

All vehicles
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

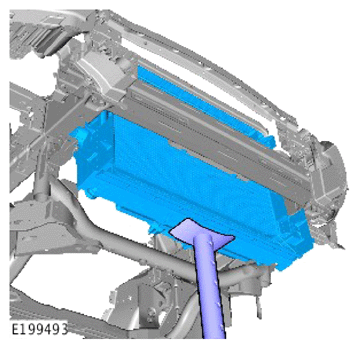

Using a suitable stand, support the radiator.

General Equipment: Vehicle/axle stands
NOTE: Only carry out the following step(s) if a new component is to be installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

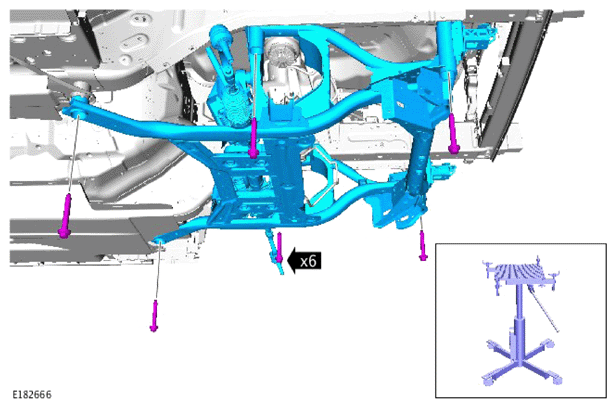

Using a suitable stand, remove the subframe and discard the bolts.

General Equipment: Transmission jack
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

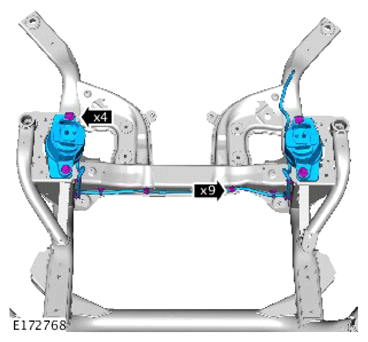

Remove both the engine mounts from the subframe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

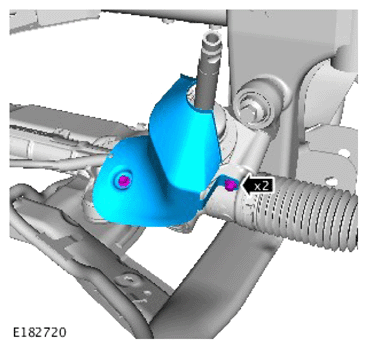

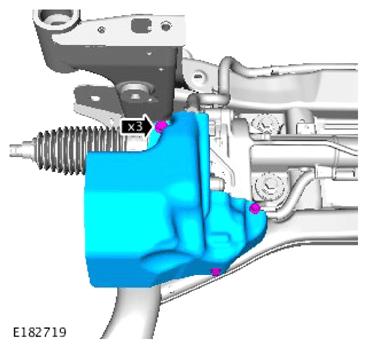

Remove the steering gear heat shield.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the steering gear heat shield.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

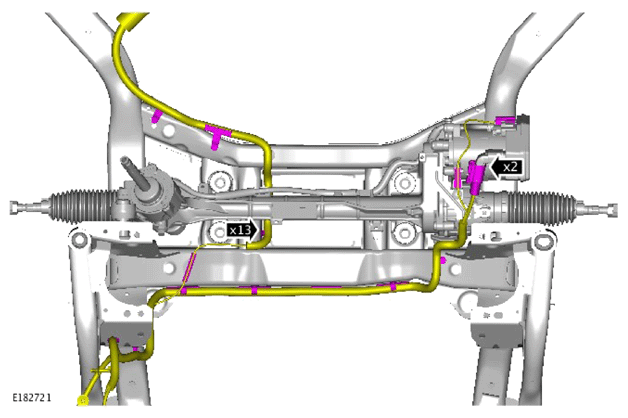

Release the steering gear wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

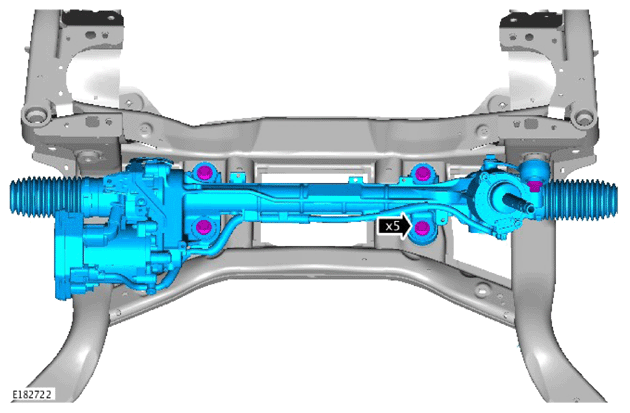

Remove the steering gear and discard the bolts.
Remove the steering gear wiring harness.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

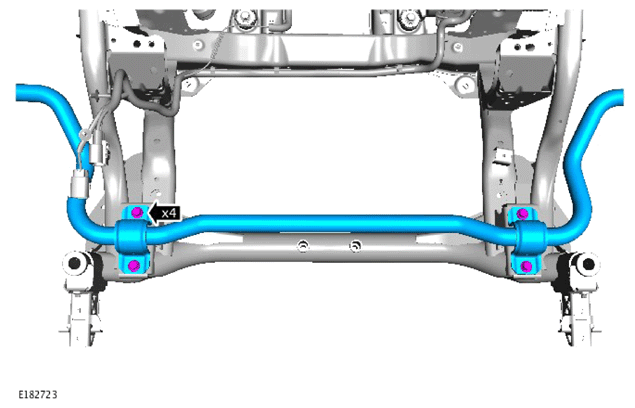

Remove the stabilizer bar.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

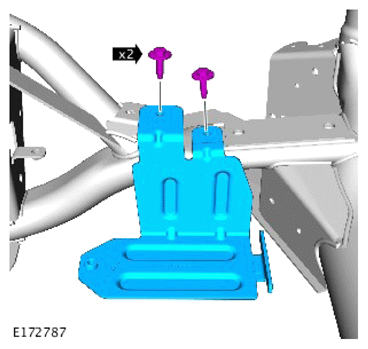

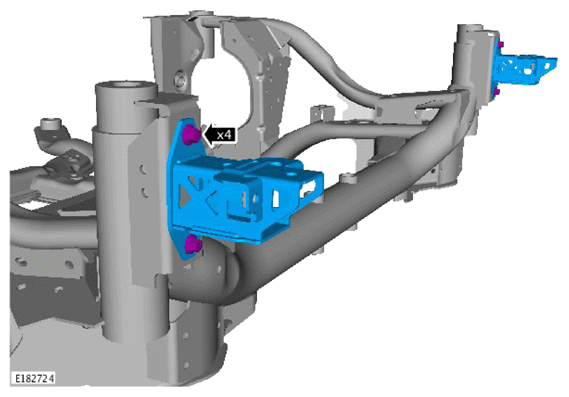

Remove the radiator mounting brackets.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the transmission oil cooler mounting bracket.
