Front SUBFRAME - INGENIUM I4 2.0L Diesel (G1817267): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some components shown removed for clarity.
  • Removal steps in this procedure may contain installation details.

The following step(s) applies to:

Vehicles with all wheel drive (AWD)

  1. Remove both front halfshafts.

    Refer to: FRONT HALFSHAFT

    The following step(s) applies to:

    All vehicles

  2. Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
  3. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

    Refer to: LIFTING

  4. Refer to: RADIATOR SPLASH SHIELD
  5. Refer to: ENGINE UNDERSHIELD
  6. Refer to: ENGINE COVER - INGENIUM I4 2.0L DIESEL

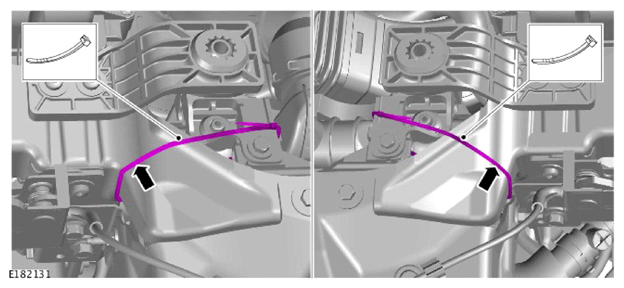

  7. G14012165Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Secure the radiator assembly.

  8. CAUTION:
    • Support the engine on a jack. The angle may need to be adjusted during this procedure.
    • Make sure to protect the paintwork.

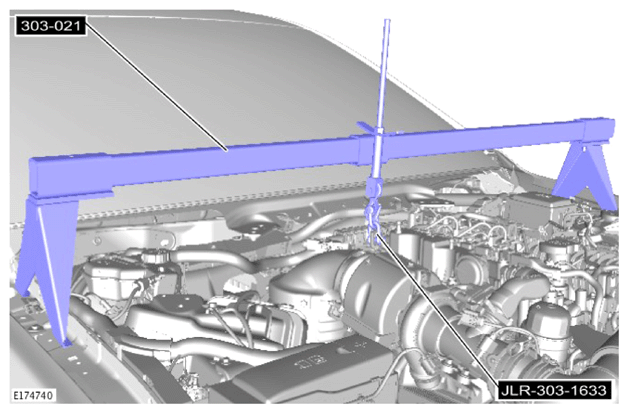

    G14012166Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Special Tool(s): 303-021

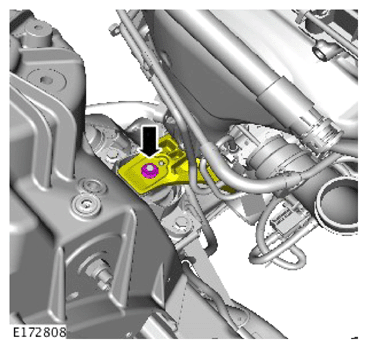

  9. G14012167Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 60Nm

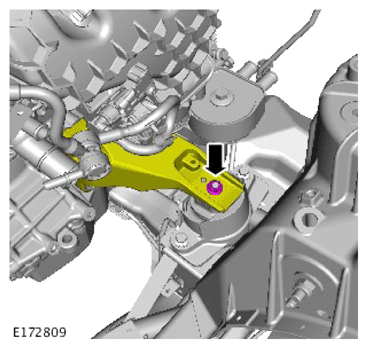

  10. G14012168Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 60Nm

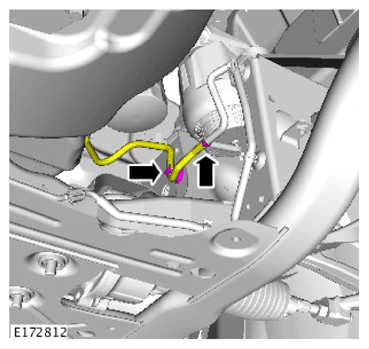

  11. G14012169Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

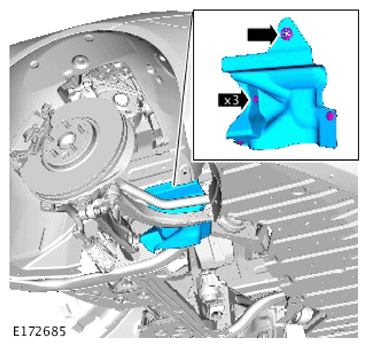

  12. G14012170Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

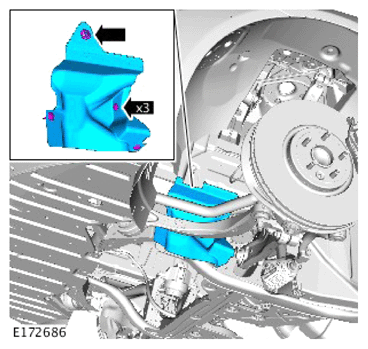

  13. G14012171Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

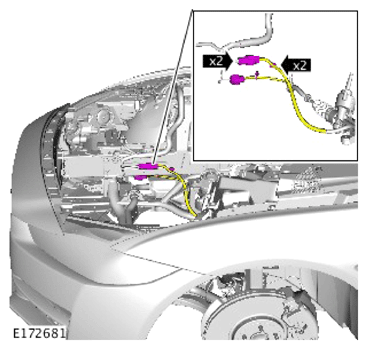

  14. G14012172Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    The following step(s) applies to:

    Vehicles with automatic transmission

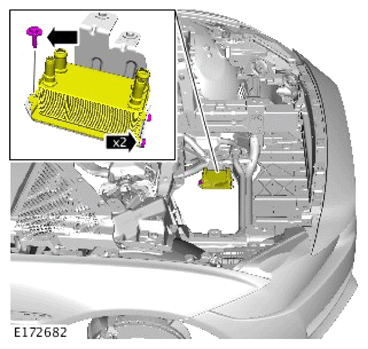

  15. G14012173Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 9Nm

    The following step(s) applies to:

    Vehicles with fuel fired booster heater

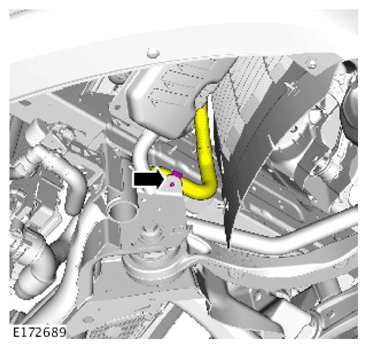

  16. G14012174Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    The following step(s) applies to:

    All vehicles

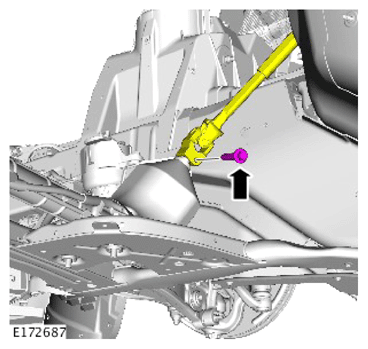

  17. CAUTION: Discard the bolt.
    G14012175Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Renew Part: Steering column lower shaft lower bolt  Quantity: 1  .

    Torque  : 30Nm

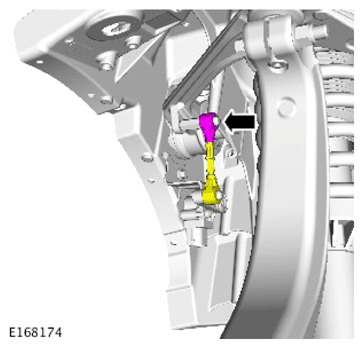

  18. NOTE: Repeat the step for the other side.
    G14012176Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  19. CAUTION: Discard the nut.
    NOTE: Repeat the step for the other side.

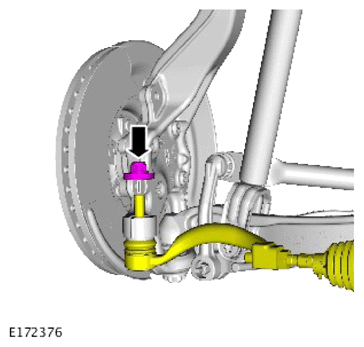

    G14012177Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Renew Part: Tie-rod end nut  Quantity: 2  .

    Torque  : 133Nm

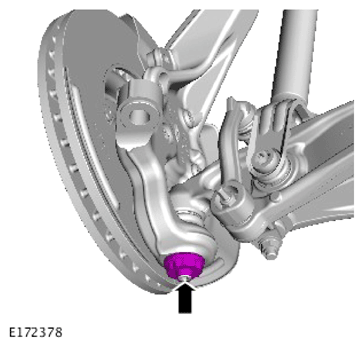

  20. NOTE:
    • Loosen but do not fully remove.
    • Repeat the step for the other side.
    G14012178Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 185Nm

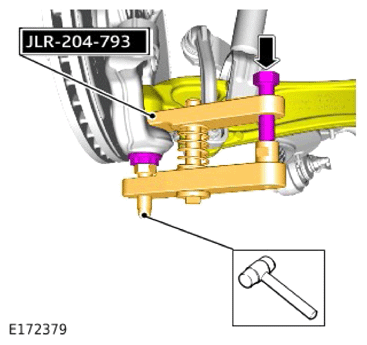

  21. NOTE: Repeat the step for the other side.
    G14012179Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Special Tool(s): JLR-204-793

    Torque  : 60Nm

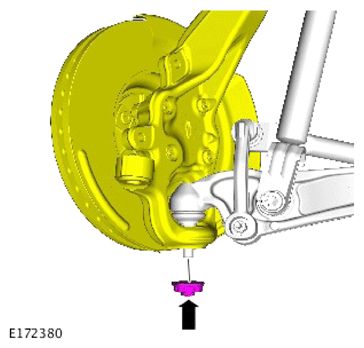

  22. CAUTION: Discard the nut.
    NOTE: Repeat the step for the other side.
    G14012180Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Renew Part: Wheel knuckle nut  Quantity: 2  .

  23. CAUTION: Discard the bolt.
    NOTE: Repeat the step for the other side.

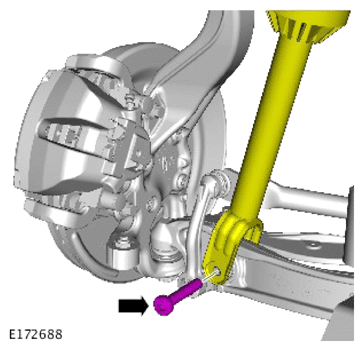

    G14012181Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Renew Part: Shock absorber lower bolt  Quantity: 2  .

    Torque  : 170Nm

  24. CAUTION: Discard the bolts.
    NOTE: Do not disassemble further if the component is removed for access only.

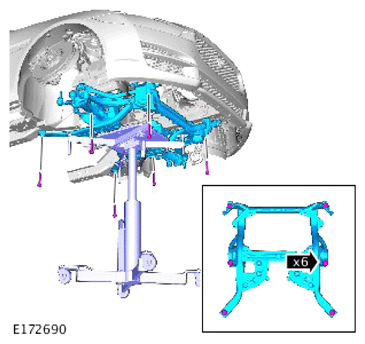

    G14012182Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    General Equipment: Transmission jack

    Renew Part: Front subframe to body bolts  Quantity: 6  .

    Torque

    Front retaining bolts

    Stage 1: 100Nm

    Stage 2: 180°

    Centre retaining bolts

    Stage 1: 100Nm

    Stage 2: 180°

    Rear retaining bolts

    Stage 1: 80Nm

    Stage 2: 60°

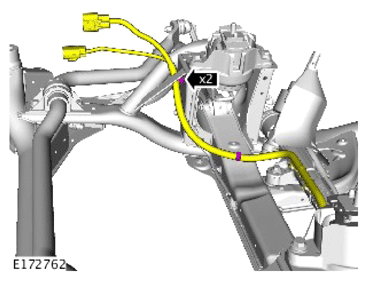

  25. G14012183Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

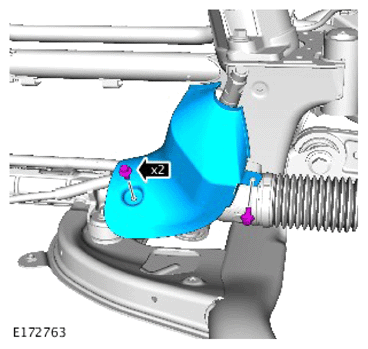

  26. G14012184Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 9Nm

  27. CAUTION: Discard the bolts.

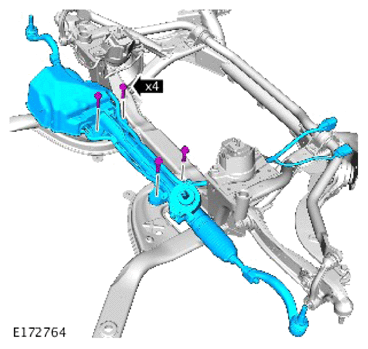

    G14012185Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Renew Part: Steering gear bolts  Quantity: 4  .

    Torque

    Stage 1: 30Nm

    Stage 2: 60°

  28. CAUTION: Discard the nuts.

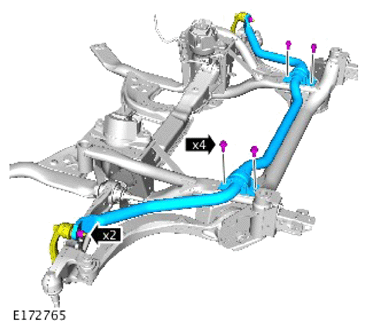

    G14012186Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Renew Part: Stabilizer bar link retaining nut(s)  Quantity: 4  .

    Torque

    Retaining nuts: 48Nm

    Retaining bolts: 60Nm

  29. CAUTION: Nuts must be tightened with vehicle at normal ride height.
    NOTE: Discard the nuts and bolts.

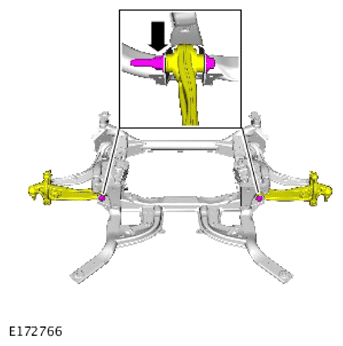

    G14012187Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Renew Part: lower control arm nut(s) and bolt(s)  Quantity: 2  .

    Torque

    Stage 1: 100Nm

    Stage 2: 180°

  30. CAUTION: Nuts must be tightened with vehicle at normal ride height.
    NOTE: Discard the nuts and bolts.

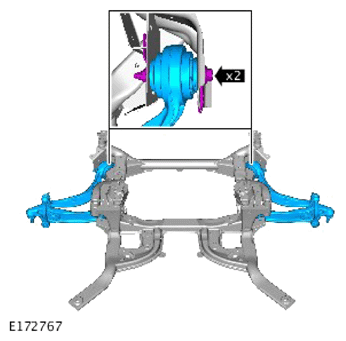

    G14012188Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Renew Part: Upper control arm to subframe nuts and bolts  Quantity: 2  .

    Torque

    Stage 1: 100Nm

    Stage 2: 180°

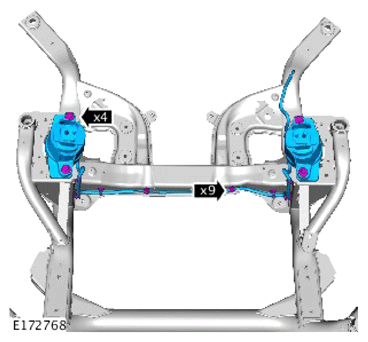

  31. G14012189Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 47Nm

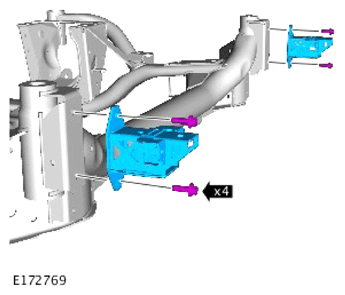

  32. G14012190Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 9Nm

    The following step(s) applies to:

    Vehicles with automatic transmission

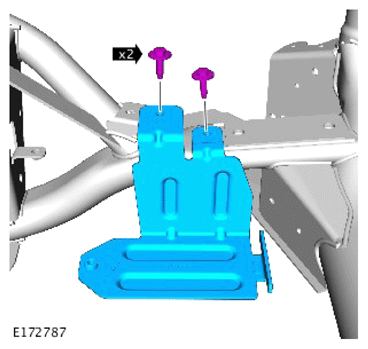

  33. G14012191Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 9Nm
