Front SUBFRAME - INGENIUM I4 2.0L Diesel (G1817267): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

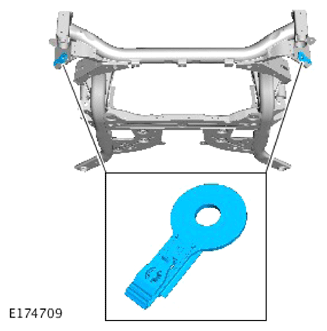

  1. CAUTION: Make sure that new bolt locators are installed.
    G14012192Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

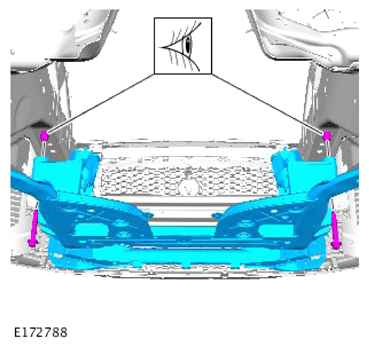

  2. G14012193Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    To install, reverse the removal procedure.

  3. NOTE: Using Jaguar Land Rover approved equipment, check and if necessary adjust the wheel alignment. SRO must be claimed separately.

    Check, and if necessary, adjust the wheel alignment.

    Refer to: WHEEL ALIGNMENT
