Control Arm Graphics (Rear Suspension)
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

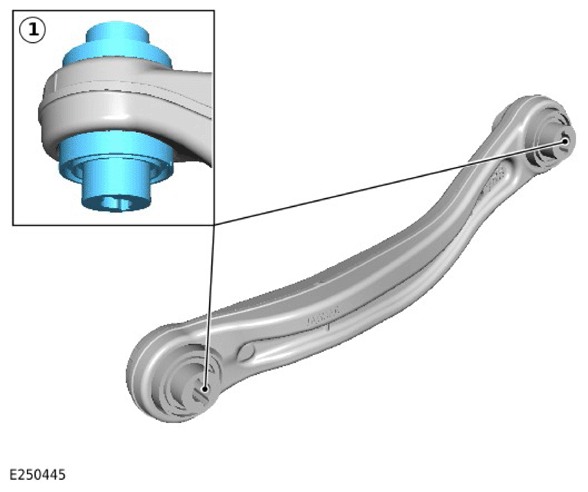

Upper Control Arm
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| CALL OUT |
COMPONENT NAME |
| 1. |
Bush |

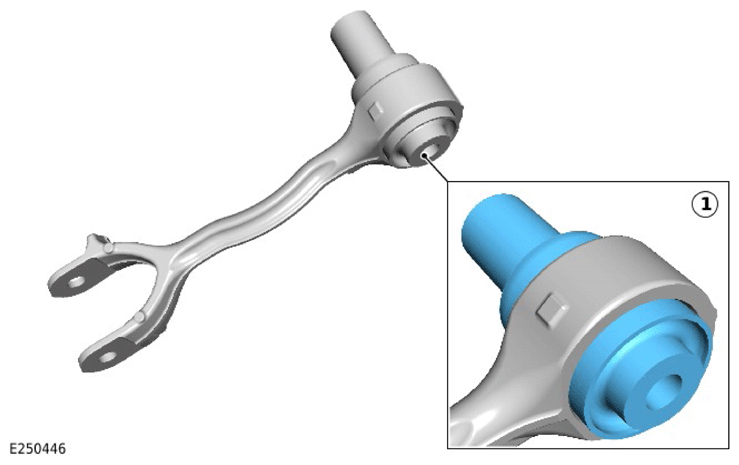

Lower Control Arm
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| CALL OUT |
COMPONENT NAME |
| 1. |
Bush |
| 2. |
Ball Joint |
Tie Arm
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| CALL OUT |
COMPONENT NAME |
| 1. |
Bush |
