Rear Suspension Height Sensor - Project 8 (G2248412): Removal
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- This procedure contains illustrations for right side components, left side components are similar.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
- Remove the rear wheel and tire.
Refer to: WHEEL AND TIRE - PROJECT 8

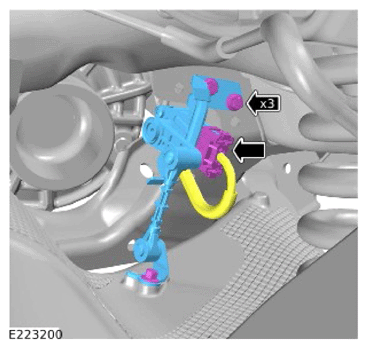

- Disconnect the electrical connector.
- Remove the 3 bolts.
- Remove the rear height sensor.
