Chassis Control Module - Project 8 (G2248935): Removal
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
- Remove the luggage compartment right side trim panel.
Refer to: LUGGAGE COMPARTMENT RIGHT TRIM PANEL

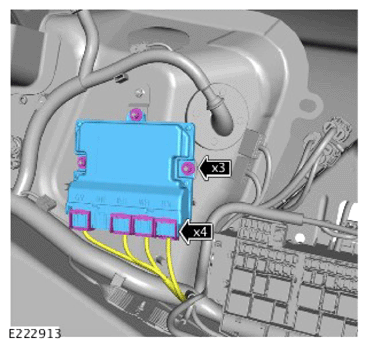

- Disconnect the 4 electrical connectors.
- Remove the 3 nuts.
- Remove the Chassis Control Module (CHCM).
