Chassis Control Module
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

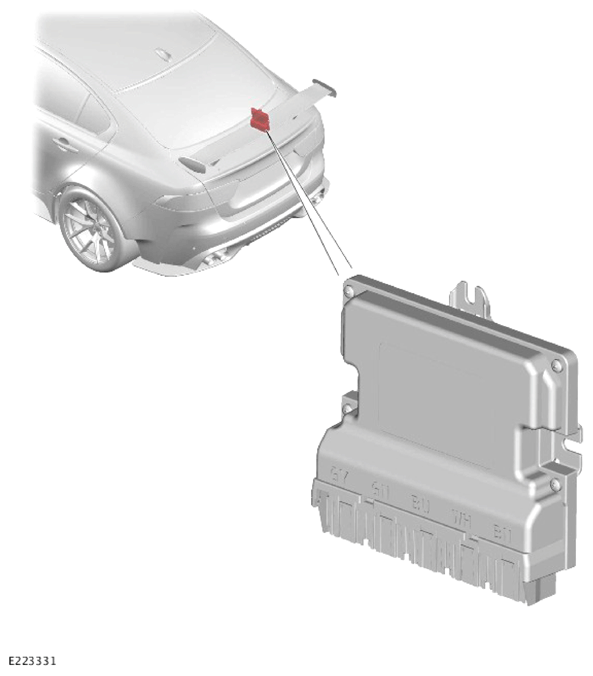

The Chassis Control Module (CHCM) is located behind the luggage compartment side trim panel on the right side. The CHCM is attached to a bracket with 3 nuts. The bracket is secured to the vehicle body.
The CHCM is the main controller of the Adaptive Damping (AD) system. The CHCM monitors the height of each corner of the vehicle via the 4 height sensors, which are mounted in-board of each road wheel.
