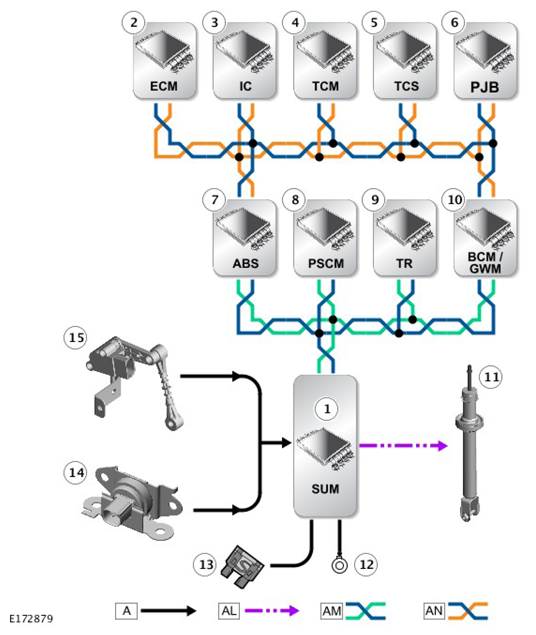

Control Diagram
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = Hardwired; AL = Pulse Width Modulation (PWM); AM = High Speed (HS) Controller Area Network (CAN) chassis systems bus; AN = HS CAN powertrain systems bus.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Suspension Control Module (SUM) |
| 2 | Engine Control Module (ECM) |
| 3 | Instrument Cluster (IC) |
| 4 | Transmission Control Module (TCM) |
| 5 | Transmission Control Switch (TCS) |
| 6 | Passenger Junction Box (PJB) |
| 7 | Anti-lock Brake System (ABS) control module |
| 8 | Power Steering Control Module (PSCM) |
| 9 | Terrain Response (TR) switchpack |
| 10 | Body Control Module/Gateway Module Assembly (BCM/GWM) |
| 11 | Adaptive damper (4 off) |
| 12 | Ground |
| 13 | Power supply |
| 14 | Accelerometer (3 off) |
| 15 | Height sensor (4 off) |
