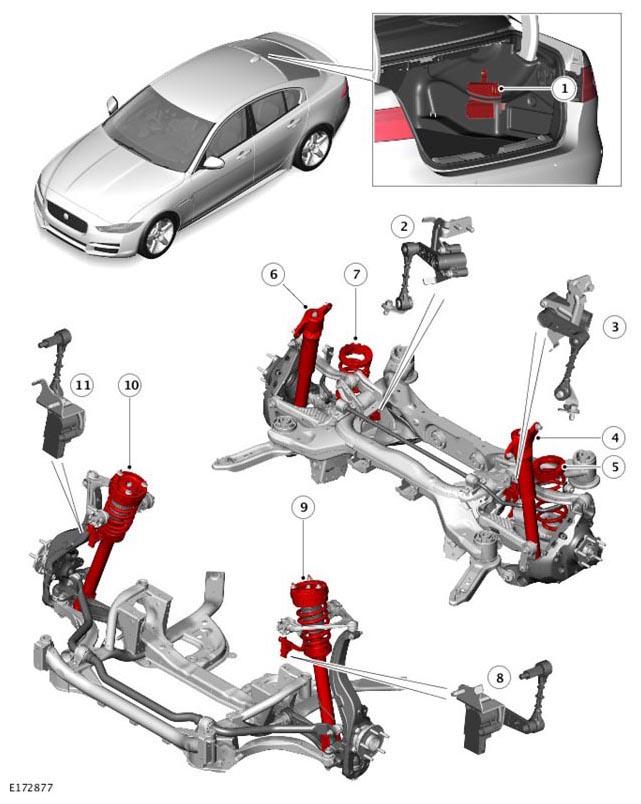

Component Location
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Suspension Control Module (SUM) |
| 2 | Rear right height sensor |
| 3 | Rear left height sensor |
| 4 | Rear left adaptive shock absorber |
| 5 | Rear left spring |
| 6 | Rear right adaptive shock absorber |
| 7 | Rear right spring |
| 8 | Front left height sensor |
| 9 | Front left adaptive shock absorber and spring assembly |
| 10 | Front right adaptive shock absorber and spring assembly |
| 11 | Front right height sensor |
