Torque Specification
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Numbers with a green background are a single use components.
COMPONENT TORQUE LOCATION
TORQUE SPECIFICATION
| DESCRIPTION | NM | LB-FT | LB-IN | |||
|---|---|---|---|---|---|---|

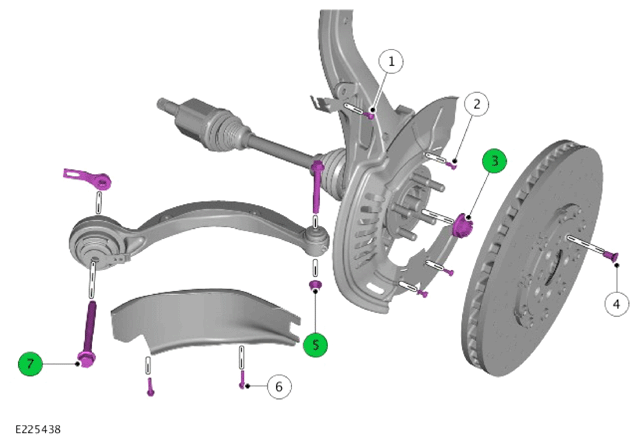

| 1 | Wheel speed sensor wiring harness bracket bolt | 9 | - | 79.6 | ||
| 2 | Brake disc shield bolt | 9 | - | 79.6 | ||
| 3 | Halfshaft outer constant velocity joint retaining nut (Refer to removal and installation procedure for full tightening sequence) | Stage 1: 80 | Stage 2: 60° | Stage 1: 59 | Stage 2: 60° | - |
| 4 | Brake disc bolt | 20 | 14.7 | - | ||
| 5 | Front lower control arm outer nut and bolt | Stage 1: 60 | Stage 2: 135° | Stage 1: 44.2 | Stage 2: 135° | - |
| 6 | Front lower control arm air deflector bolt | 9 | - | 79.6 | ||
| 7 | Front lower control arm inner nut and bolt | Stage 1: 140 | Stage 2: 300° | Stage 1: 103.2 | Stage 2: 300° | - |

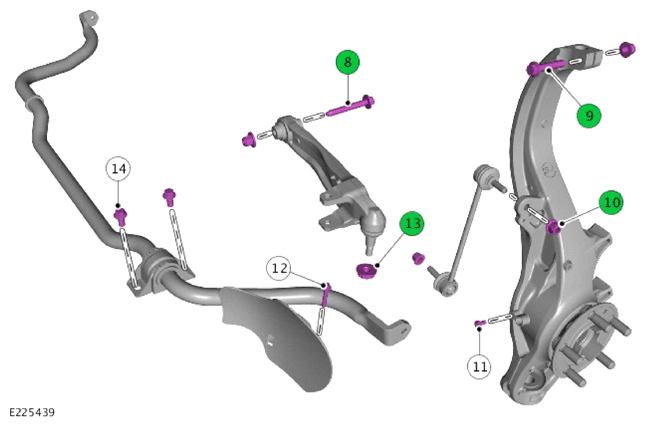

| 8 | Rear lower control arm inner nut and bolt | Stage 1: 100 | Stage 2: 180° | Stage 1: 73.7 | Stage 2: 180° | - |
| 9 | Wheel knuckle upper nut and bolt | 60 | 44.2 | - | ||
| 10 | Stabilizer bar link nut | 48 | 35.4 | - | ||
| 11 | Wheel speed sensor bolt | 9 | - | 79.6 | ||
| 12 | Stabilizer bar air deflector bolt | 5 | - | 44.2 | ||
| 13 | Lower arm ball joint nut | Stage 1: 90 | Stage 2: 90° | Stage 1: 66.3 | Stage 2: 90° | - |
| 14 | Stabilizer bar bracket bolt | 60 | 44.2 | - | ||

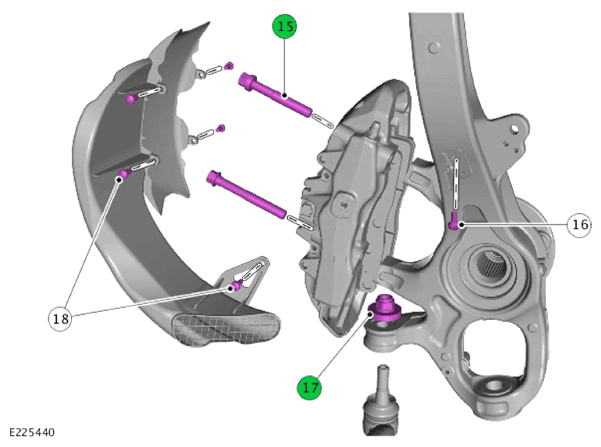

| 15 | Brake caliper retaining bolt | Stage 1: 60 | Stage 2: 120° | Stage 1: 44.2 | Stage 2: 120° | - |
| 16 | Brake pad indicator wiring harness bracket bolt | 9 | - | 79.6 | ||
| 17 | Tie rod end nut | 133 | 98.1 | - | ||
| 18 | Brake caliper duct bolt | 5 | - | 44.2 | ||

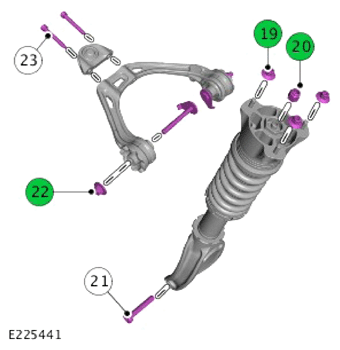

| 19 | Shock absorber upper mounting nut | 30 | 22.1 | - | ||
| 20 | Shock absorber top nut | 60 | 44.2 | - | ||
| 21 | Shock absorber link bolt | Stage 1: 60 | Stage 2: 120° | Stage 1: 44.2 | Stage 2: 120° | - |
| 22 | Upper arm to body nut and bolt | Stage 1: 35 | Stage 2: 60° | Stage 1: 25.8 | Stage 2: 60° | - |
| 23 | Upper arm ball join bolt | 30 | 22.1 | - | ||

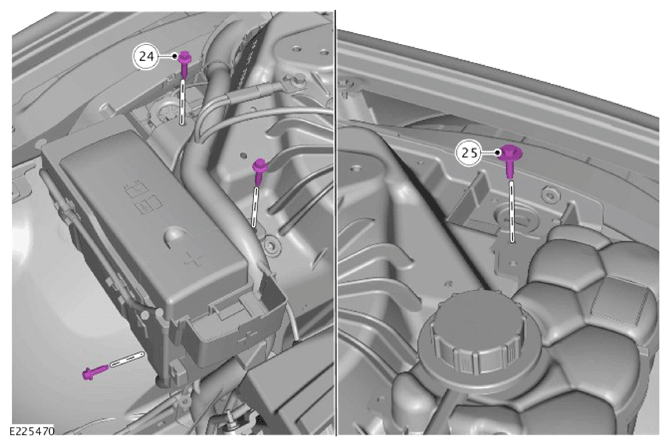

| 24 | Engine Junction Box (EJB) bolt | 9 | - | 79.6 | ||
| 25 | Coolant expansion tank bolt | 9 | - | 79.6 | ||
