Wheel Knuckle - RWD (G1920894): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.
Some components shown removed for clarity.
Removal steps in this procedure may contain installation details.

Before replacing the Wheel Knuckle, make sure to have followed the diagnosis and testing procedure.
Refer to: WHEEL BEARINGS
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.
Refer to: WHEEL AND TIRE

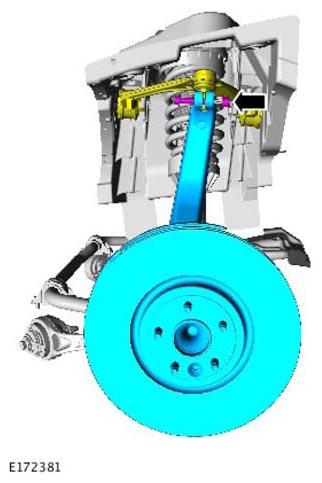

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

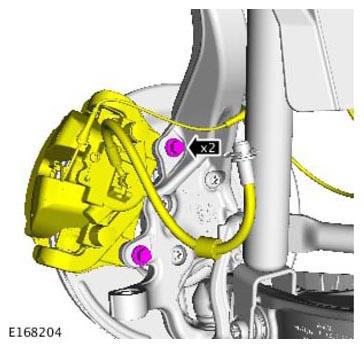

CAUTION: Discard the bolts.

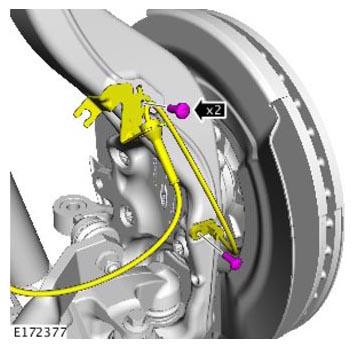

NOTE: Using a suitable tie strap, position and secure the component to one side.

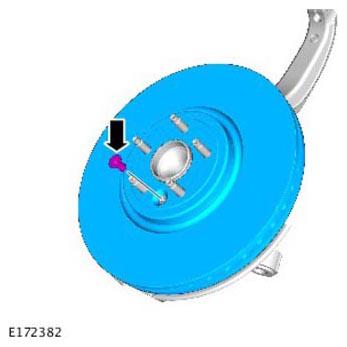

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

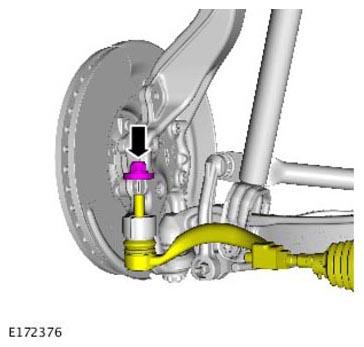

CAUTION: Discard the nut.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

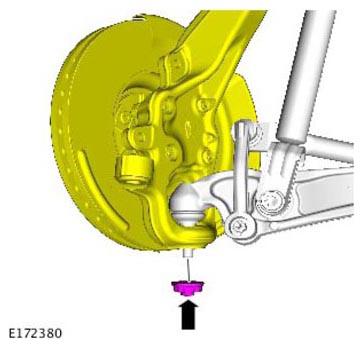

NOTE: Loosen but do not fully remove.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

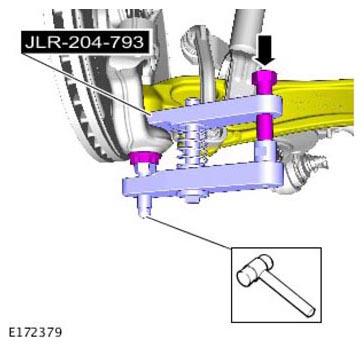

Special Tool(s): JLR-204-793

Torque : 60Nm

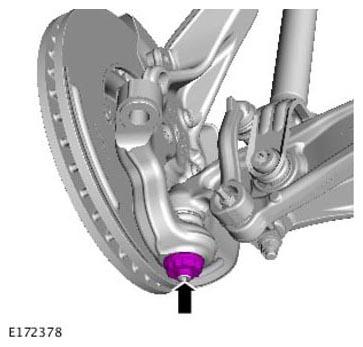

CAUTION: Discard the nut.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION:
- Do not use air or power tools to remove or install the nut and bolt. Failure to follow this instruction may result in damage to the wheel knuckle.
- Do not pry or wedge open the clevis gap to release the upper ball joint from the wheel knuckle. Failure to follow this instruction may result in damage to the wheel knuckle.
- Discard the nut and bolt.
NOTE: Do not disassemble further if the component is removed for access only.

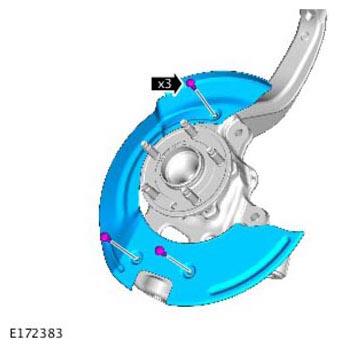

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
