Wheel Knuckle - AWD (G1899209): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. CAUTION:
    • Make sure that the mating faces are clean and free of corrosion and foreign material.
    • Install new bolts.
    • Install the bolts and tighten in the sequence shown.
    • Make sure that all bolts are fully installed in less than 5 minutes.

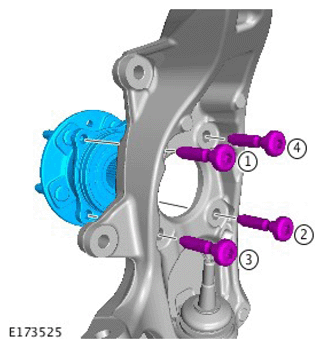

    Fig 1: Wheel Hub Retaining Bolts Tightening Sequence
    G11296565Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Renew Part: Wheel bearing bolts  Quantity: 1  .

    Torque

    Stage 1: 30Nm

    Stage 2: 60Nm

    Stage 3: 90Nm

    Stage 4: 120°

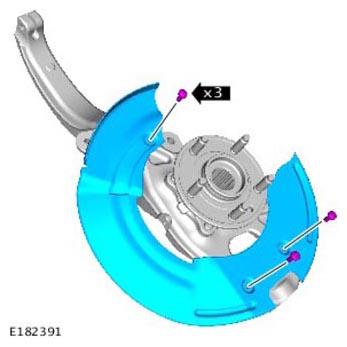

  2. G11305527Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 9Nm

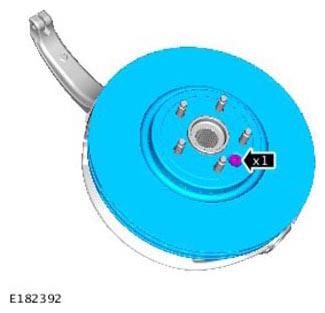

  3. G11305526Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 20Nm

  4. CAUTION: Take extra care when installing the component. Failure to follow this instruction might result in damage to the CV  boot.

    Install the wheel knuckle.

  5. CAUTION:
    • Take extra care when installing the component. Failure to follow this instruction might result in damage to the CV  boot.
    • Do not use air or power tools to remove or install the nut and bolt. Failure to follow this instruction may result in damage to the wheel knuckle.
    • Do not pry or wedge open the clevis gap to release the upper ball joint from the wheel knuckle. Failure to follow this instruction may result in damage to the wheel knuckle.

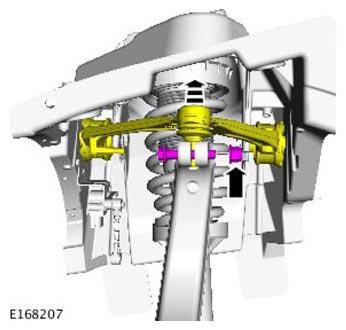

    G11305447Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Renew Part: Wheel knuckle nut and bolt  Quantity: 1  .

    Torque  : 60Nm

  6. CAUTION:
    • Take extra care when installing the component. Failure to follow this instruction might result in damage to the CV  boot.
    • Do not use air or power tools to remove or install the halfshaft nut.

    Use the new halfshaft nut to aid installation of the halfshaft into the hub.

    Renew Part: Front halfshaft nut  Quantity: 1  .

  7. CAUTION: Take extra care when installing the component. Failure to follow this instruction might result in damage to the CV  boot.

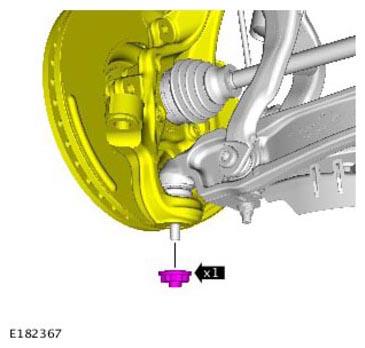

    G11305523Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Renew Part: Ball joint nut(s) and washer(s)  Quantity: 1  .

    Torque  : 185Nm

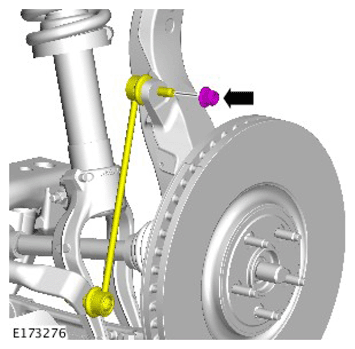

  8. G11296550Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Renew Part: Stabilizer bar link upper nut  Quantity: 1  .

    Torque  : 60Nm

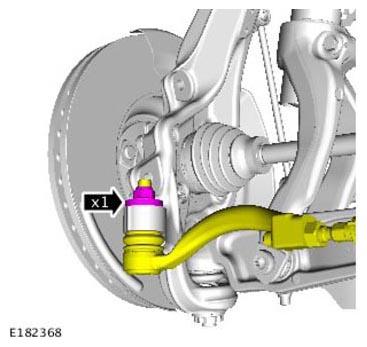

  9. G11305519Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Renew Part: Tie-rod end nut  Quantity: 1  .

    Torque  : 133Nm

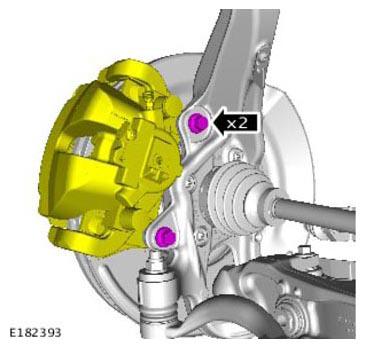

  10. G11305518Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Renew Part: Brake caliper housing bolt(s)  Quantity: 2  .

    Torque

    Stage 1: 70Nm

    Stage 2: 120°

  11. G11305444Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

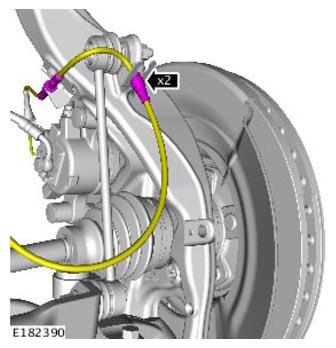

  12. G11305516Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

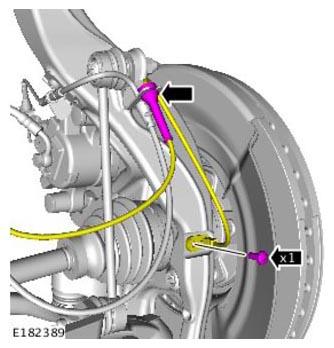

  13. G11305515Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 9Nm

  14. CAUTION: Do not use air or power tools to remove or install the halfshaft nut.

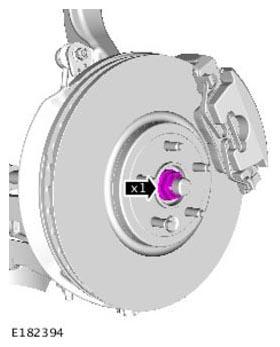

    G11305530Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Apply the foot brake and tighten the new halfshaft nut.

      Torque  : 175Nm

    • Loosen the halfshaft nut.

      Loosen  : 90°

    • Install and tighten a halfshaft nut.

      Torque

      Stage 1: 80Nm

      Stage 2: 60°

  15. Install the wheel and tire.

    Refer to: WHEEL AND TIRE
