Right Upper Arm - Project 8 (G2246502): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the cowl vent screen.
Refer to: COWL PANEL
Remove the front shock absorber.
Refer to: FRONT SHOCK ABSORBER - PROJECT 8, AWD
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

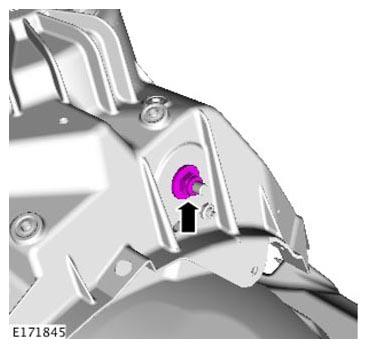

Remove and discard the right upper control arm rear nut.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

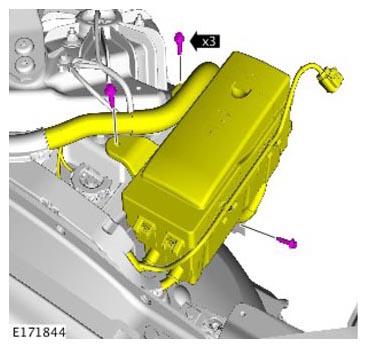

Remove the 3 bolts and position the Engine Junction Box (EJB) away from the right upper control arm front nut.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

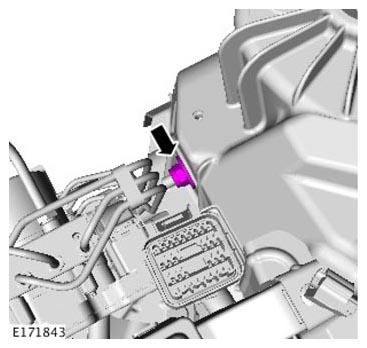

Remove and discard the right upper control arm front nut.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

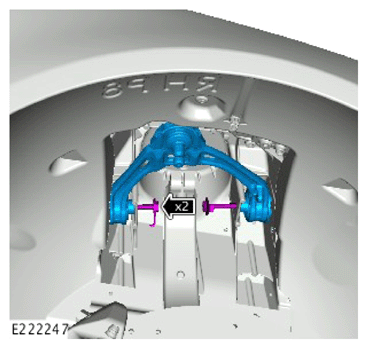

Remove and discard the 2 bolts.
Remove the right upper control arm.
