Right Upper Arm (G2172868): Removal
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Nuts and bolts must be tightened with vehicle at normal ride height.
NOTE:
- Some variation in the illustrations may occur, but the essential information is always correct.
- Some components shown removed for clarity.
- Removal steps in this procedure may contain installation details.
- Before replacing the Right Upper Arm, make sure to have followed the diagnosis and testing procedure.
Refer to: SUSPENSION ARMS
-
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
Raise and support the vehicle.
- Refer to: FRONT SHOCK ABSORBER - AWD
Refer to: FRONT SHOCK ABSORBER - RWD
- Refer to: WINDSHIELD WIPER PIVOT ARM
-
CAUTION: Discard the nut.

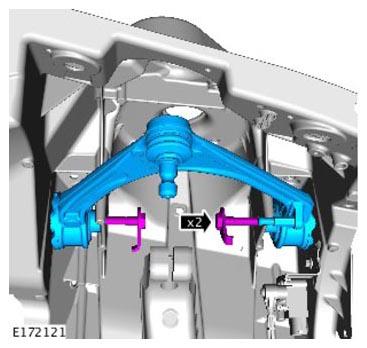

Renew Part: Upper control arm nut(s) Quantity: 1 .
Torque
Stage 1: 35Nm
Stage 2: 60°
Torque : 9Nm
-

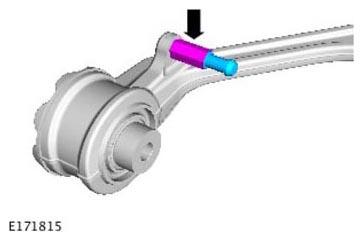

CAUTION: Discard the nut.
Renew Part: Upper control arm nut(s) Quantity: 1 .
Torque
Stage 1: 35Nm
Stage 2: 60°
Torque : 9Nm
