Rear Lower Arm - RWD (G1920886): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Nuts and bolts must be tightened with vehicle at normal ride height.

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.
Some components shown removed for clarity.
Removal steps in this procedure may contain installation details.

Before replacing the Rear Lower Arm, make sure to have followed the diagnosis and testing procedure.
Refer to: SUSPENSION ARMS
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

Raise and support the vehicle.
Refer to: WHEEL AND TIRE
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

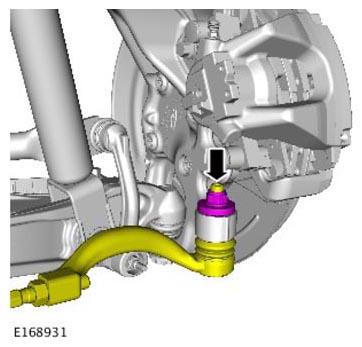

CAUTION: Discard the nut.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: Tie-rod end nut Quantity: 1 .

Torque : 133Nm
Refer to: FRONT STABILIZER BAR LINK - AWD

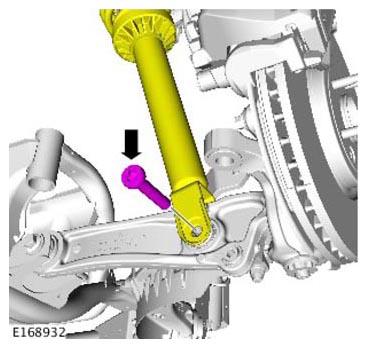

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque

Stage 1: 60Nm

Stage 2: 120°
CAUTION: Discard the nut and bolt.

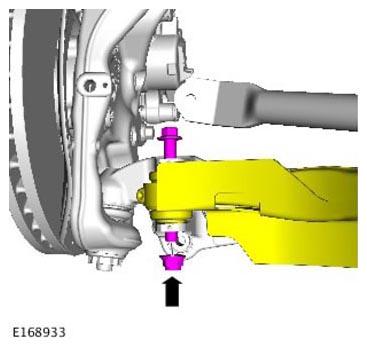

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: Lower control arm nut and bolt Quantity: 1 .

Torque

Stage 1: 60Nm

Stage 2: 135°
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

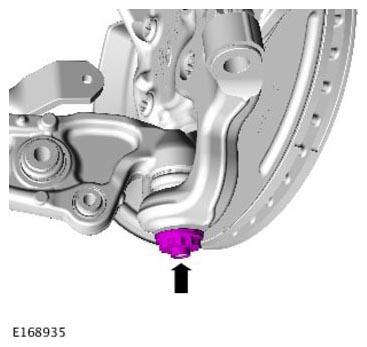

Loosen, but do not fully remove the nut.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

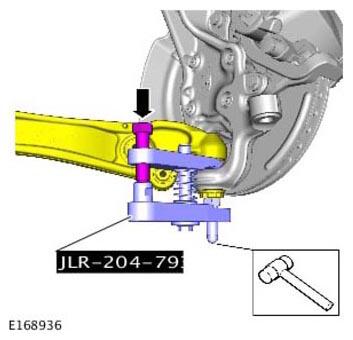

Special Tool(s): JLR-204-793
CAUTION: Discard the nut.

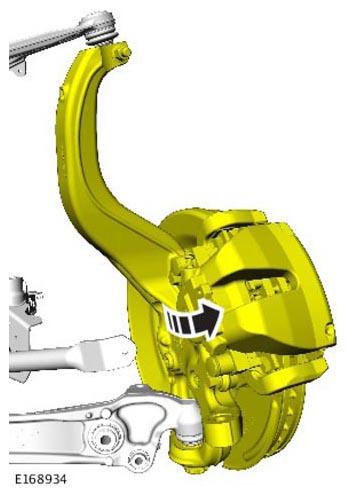

NOTE: Using a suitable stand, support the wheel knuckle.

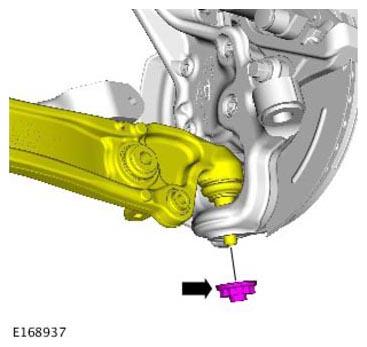

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: Front lower control arm nut Quantity: 1 .

Torque : 185Nm
CAUTION: Discard the nut and bolt.

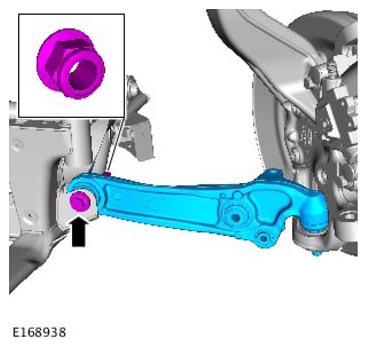

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: Front lower control arm nut and bolt Quantity: 1 .

Torque

Stage 1: 100Nm

Stage 2: 180°
