Left Upper Arm - Project 8 (G2246501): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the shock absorber.
Refer to: FRONT SHOCK ABSORBER - PROJECT 8, AWD
Remove the cowl vent screen.
Refer to: COWL PANEL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the upper control arm nut.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the 5 wiring harness retaining clips and disconnect the adaptive shock absorber electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the bolt and position the coolant expansion tank away from the left upper control arm nut.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the upper control arm nut.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

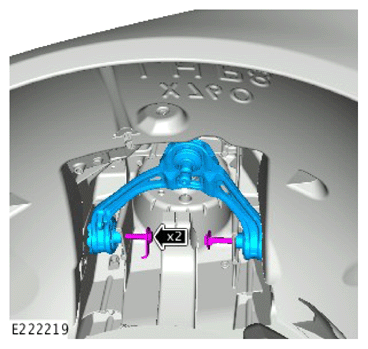

Remove and discard the 2 bolts.
Remove the left upper control arm.
