Left Upper Arm (G2172867): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Nuts and bolts must be tightened with vehicle at normal ride height.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Before replacing the Left Upper Arm, make sure to have followed the diagnosis and testing procedure.
Refer to: SUSPENSION ARMS
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the shock absorber.
Refer to: FRONT SHOCK ABSORBER - AWD

Refer to: FRONT SHOCK ABSORBER - RWD
Remove the windshield wiper pivot arm.
Refer to: WINDSHIELD WIPER PIVOT ARM
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the cowl panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

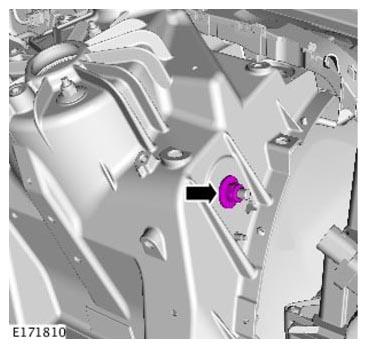

Remove and discard the nut.

Renew Part: Upper control arm nut(s) Quantity: 1 .

Torque

Stage 1: 35Nm

Stage 2: 60°
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

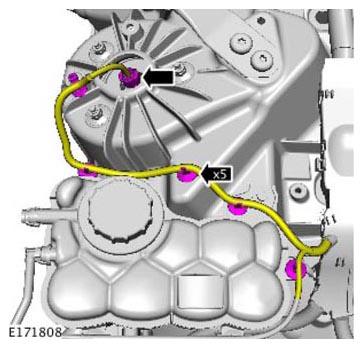

Release the harness and disconnect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

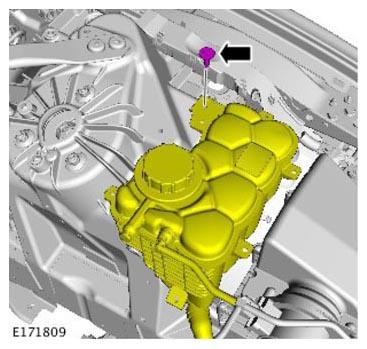

Remove the bolt and move the coolant expansion tank.

Torque : 9Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

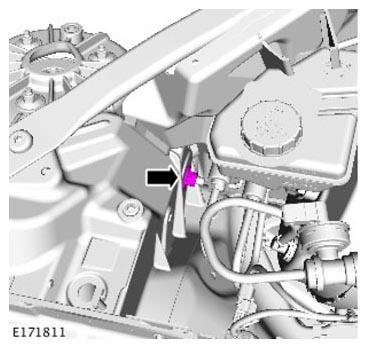

Remove and discard the nut.

Renew Part: Upper control arm nut(s) Quantity: 1 .

Torque

Stage 1: 35Nm

Stage 2: 60°
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

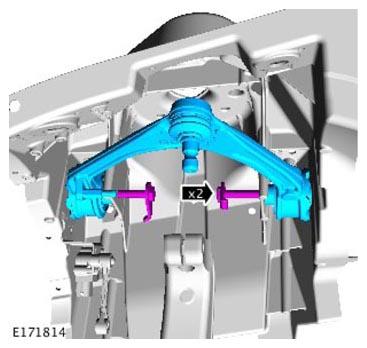

Remove the upper arm.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 9Nm
