Front Wheel Bearing And Wheel Hub - RWD (G1920893): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.
Some components shown removed for clarity.

Before replacing the Front Wheel Bearing and Wheel Hub, make sure to have followed the diagnosis and testing procedure.
Refer to: WHEEL BEARINGS
Raise and support the vehicle.
Refer to: LIFTING
Refer to: BRAKE DISC

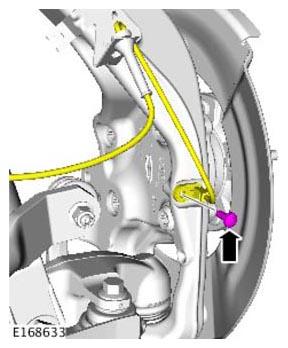

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION:

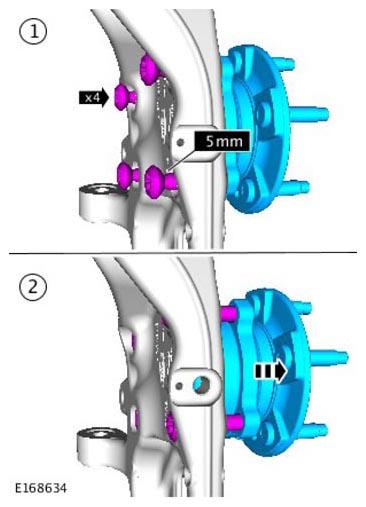

- Do not attempt to release the wheel hub by hitting it with a hammer directly, loosen the wheel hub retaining bolts partially before applying an even amount of force to the head of each bolts to release the wheel hub from the wheel knuckle. Failure to follow this instruction may cause damage to the component.
- Discard the bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
