Front Wheel Bearing And Wheel Hub - RWD (G1920893): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

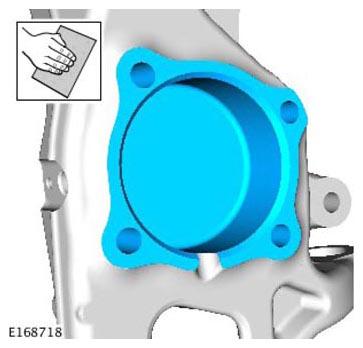

CAUTION: Make sure that the mating faces are clean and free of corrosion and foreign material.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

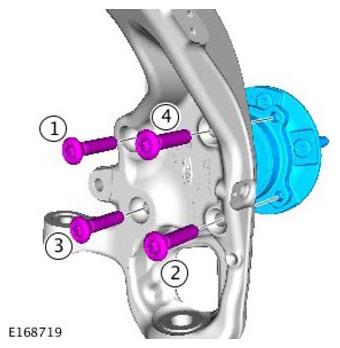

Fig 1: Wheel Hub Retaining Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the wheel hub and bearing assembly.
- Install and tighten the 4 new bolts in the sequence shown.
  Renew Part: Wheel bearing bolts Quantity: 4 .

  Torque

  Stage 1: 90Nm

  Stage 2: 120°
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 9Nm
Refer to: BRAKE DISC
