Front Wheel Bearing And Wheel Hub - Project 8 (G2248482): Removal
- The lower arm ball joint can be damaged by excessive articulation.
- The wheel knuckle must be fully supported at all times.
- Do not allow the wheel knuckle to hang on the lower arm.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains illustrations for left side components, right side components are similar.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
- Remove the wheel and tire.
Refer to: WHEEL AND TIRE - PROJECT 8
-
CAUTION: Do not use air or power tools to remove or install the halfshaft nut.NOTE: Retain the nut for use in the installation procedure.
Apply the foot brake and remove the halfshaft nut.
Remove the 5 bolts and remove the duct.
- Remove the bolt and remove the Anti-lock Brake System (ABS) sensor from the wheel knuckle.
- Release the ABS wiring harness from the bracket.
- Position the harness away from the wheel knuckle.
-
NOTE: If equipped.

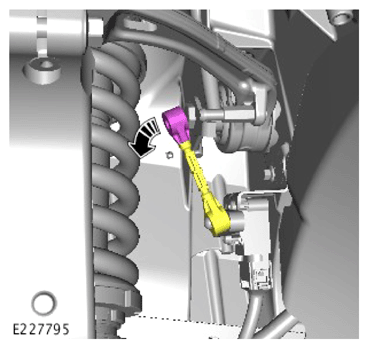

Disconnect the suspension height sensor link.
-
CAUTION: Make sure that the brake hose does not support the full weight of the brake caliper assembly.

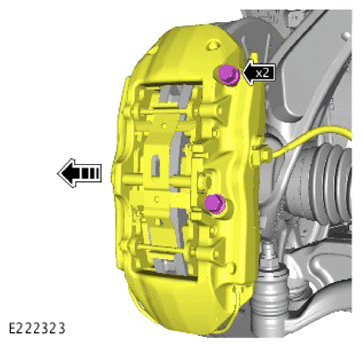

- Remove and discard the 2 brake caliper bolts.
- Remove the brake caliper from the disc and suitably support the caliper away from the wheel knuckle.

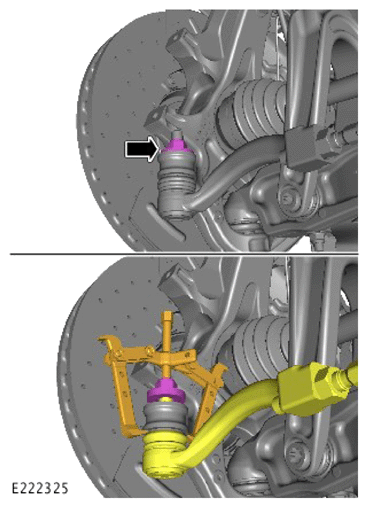

- Loosen, but do not fully remove the tie rod end nut.
- Using a suitable tool, release the tie rod end.
General Equipment: Two leg puller
- Remove the nut and position the tie rod assembly away from the wheel knuckle.

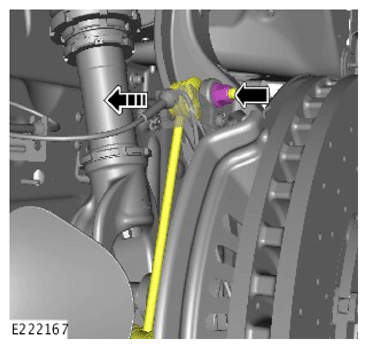

- Remove and discard the stabilizer bar link nut.
- Position the stabilizer bar link in the direction illustrated.

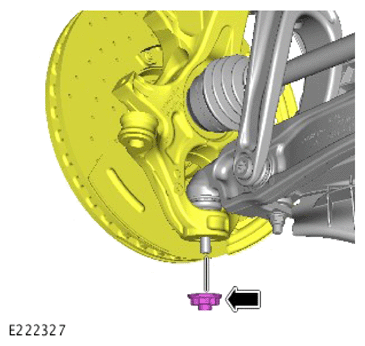

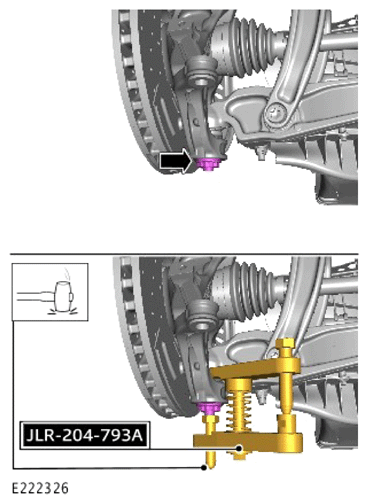

- Loosen, but do not fully remove the nut.
- Position the special tool as illustrated
- Using the special tool, release the lower arm ball joint.
Special Tool(s): JLR-204-793A
General Equipment: Copper Hammer
- Remove the special tool.
Remove the nut.

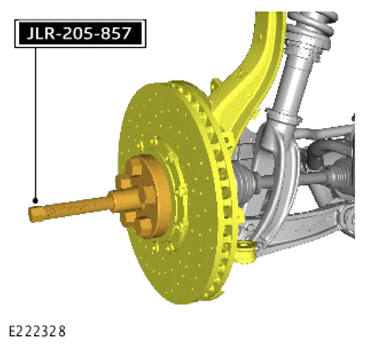

- Using the special tool, release the halfshaft.
Special Tool(s): 205-857
- Remove the special tool.
- Using the special tool, release the halfshaft.
- Remove and discard the upper wheel knuckle nut and bolt.
- Release the wheel knuckle assembly from the upper arm ball joint.
Remove the wheel knuckle assembly from the vehicle.

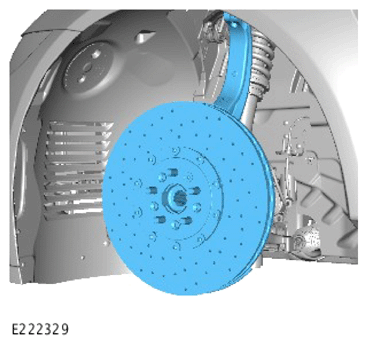

Remove the bolt and remove the brake disc.

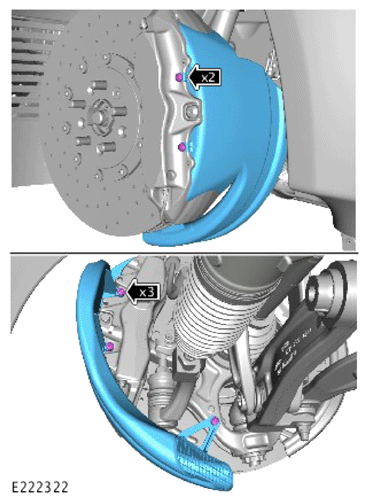

Remove the 3 bolts and remove the brake disc shield.

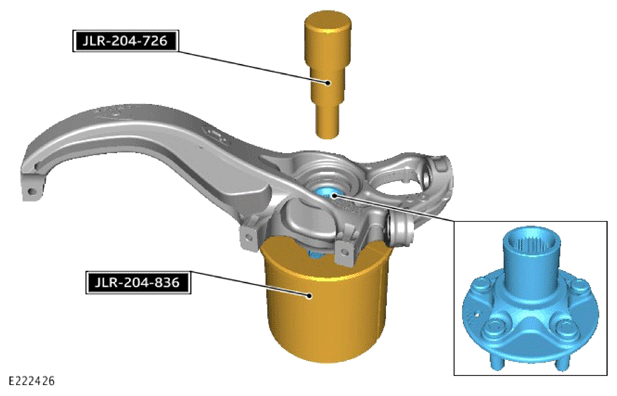

- Position the special tool as illustrated.
- Using a hydraulic press, remove the wheel hub.
Special Tool(s): JLR-204-726 , JLR-204-836
General Equipment: Hydraulic press

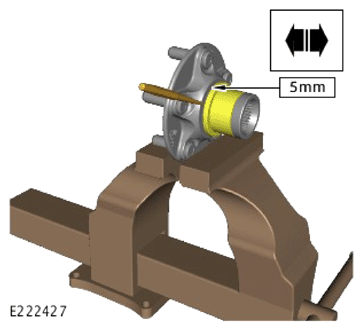

Using a suitable tool, position the inner race 5mm.
General Equipment: Vise jaw protectors
General Equipment: Workbench with vice
General Equipment: Chisel

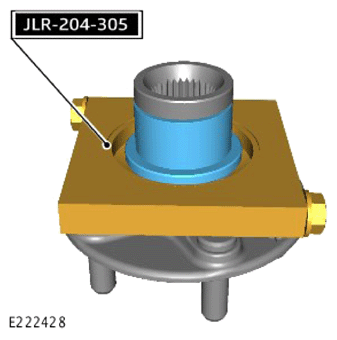

- Install the special tool as illustrated.
Special Tool(s): 204-305
- Using a hydraulic press, remove the inner bearing race.
General Equipment: Hydraulic press
- Install the special tool as illustrated.
Remove and discard the circlip.
-
NOTE: Note the position of the wheel bearing before removal.

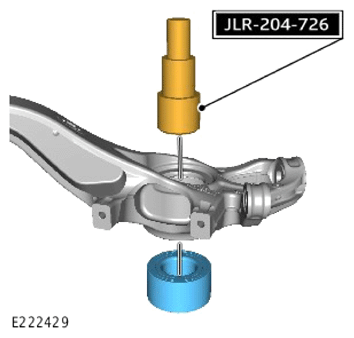

- Install the special tools as illustrated.
- Using a hydraulic press, remove and discard the wheel bearing.
Special Tool(s): JLR-204-726
General Equipment: Hydraulic press
