Front Wheel Bearing And Wheel Hub - Project 8 (G2248482): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

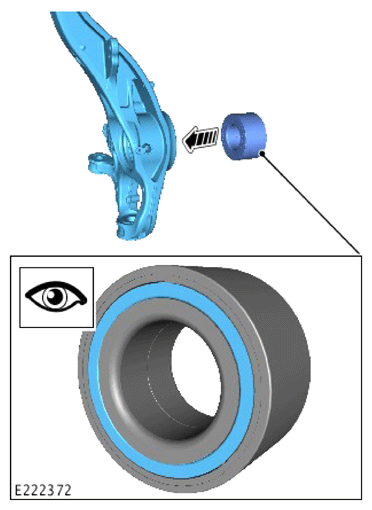

  1. G13995664Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Make sure the Anti-lock Brake System (ABS) magnetic pickup of the wheel bearing, faces towards the wheel knuckle.

    Renew Part: Wheel hub bearing(s)  Quantity: 1  .

  2. CAUTION: Make sure all the mating faces are clean and free from foreign material.

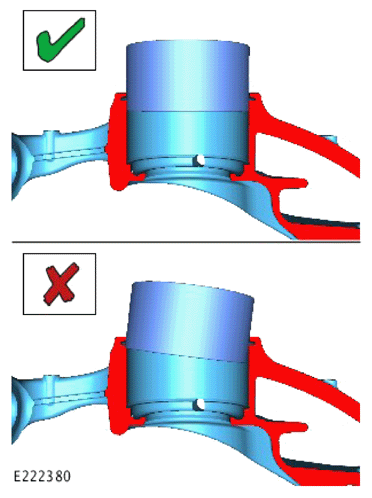

    G13995665Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Make sure the wheel bearing is installed correctly. Failure to install the wheel bearing straight could cause damage to the wheel bearing and the wheel knuckle.

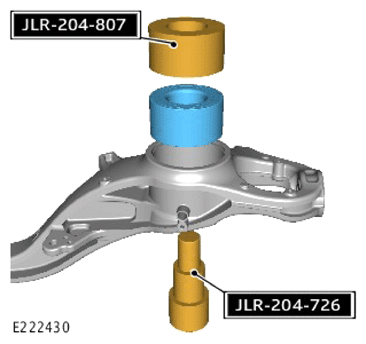

  3. G13995666Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the special tools as illustrated.

      Special Tool(s): JLR-204-726  , JLR-204-807

    • Using a hydraulic press, install the wheel bearing.

      General Equipment: Hydraulic press

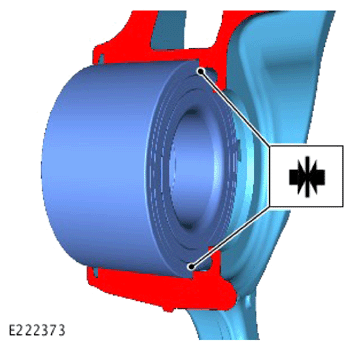

  4. G13995667Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Make sure the wheel bearing is fully pressed into the wheel knuckle.

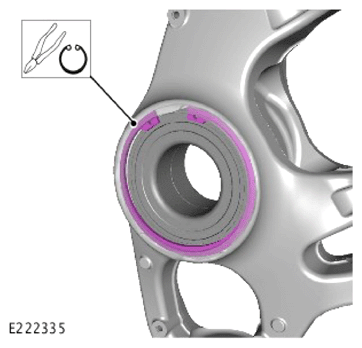

  5. G13995662Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the circlip.

  6. CAUTION: The bevelled edge of the retaining clip must face outwards.

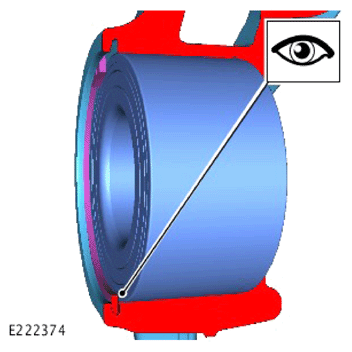

    G13995669Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Make sure the wheel bearing circlip is correctly installed.

  7. CAUTION: Make sure all the mating faces are clean and free from foreign material.

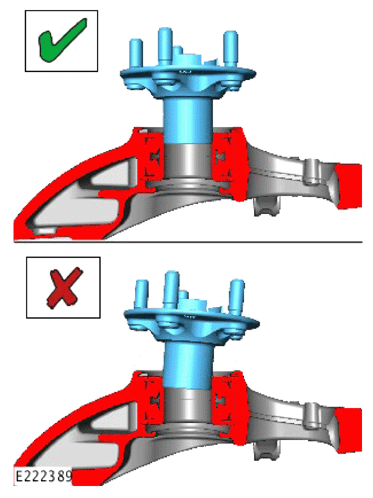

    G13995670Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Make sure the wheel hub is installed correctly. Failure to install the wheel hub straight could cause damage to the wheel bearing.

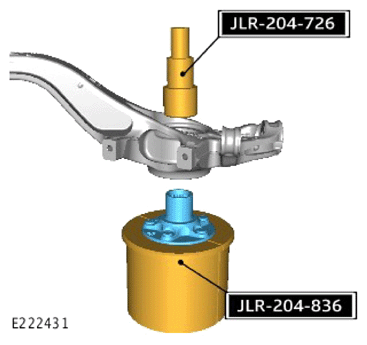

  8. G13995671Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    1. Install the special tools as illustrated.

      Special Tool(s): JLR-204-726  , JLR-204-836

    2. Using a hydraulic press install the wheel hub to the wheel bearing and knuckle assembly.

    General Equipment: Hydraulic press

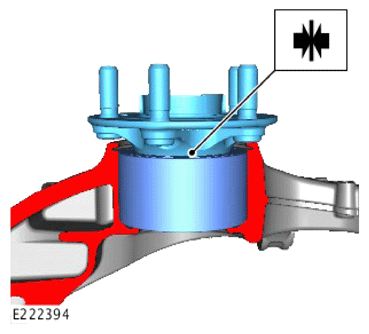

  9. G13995672Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Make sure the wheel hub is fully installed.

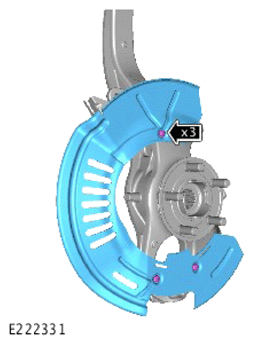

  10. G13995658Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the brake disc shield.
    • Install and tighten the 3 bolts.

      Torque  : 9Nm

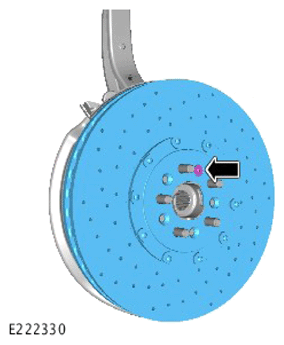

  11. G13995657Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the brake disc
    • Install and tighten the bolt.

      Torque  : 20Nm

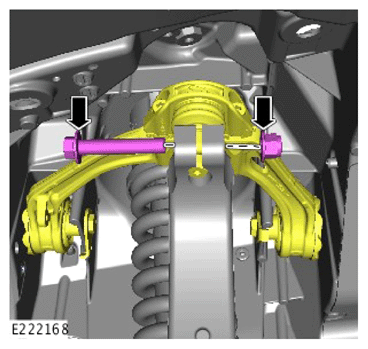

  12. G13995551Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • CAUTION:
      • Do not use air or power tools to remove or install the nut and bolt. Failure to follow this instruction may result in damage to the wheel knuckle.
      • Do not pry or wedge open the clevis gap to release the upper ball joint from the wheel knuckle. Failure to follow this instruction may result in damage to the wheel knuckle.

      Install the knuckle assembly to the vehicle and reposition the upper control arm.
    • Install and tighten the new upper control arm nut and bolt.

      Renew Part: Wheel knuckle nut and bolt  Quantity: 1  .

      Torque  : 60Nm

  13. CAUTION: Do not use air or power tools to remove or install the halfshaft nut.

    Use the original halfshaft nut to aid installation of the halfshaft into the hub.

  14. Reposition the lower arm. Install and tighten the new nut.

    Renew Part: Ball joint nut(s) and washer(s)  Quantity: 1  .

    Torque

    Stage 1: 90Nm

    Stage 2: 90°

  15. Reposition the stabilizer bar link. Install and tighten the new nut.

    Renew Part: Stabilizer bar link upper nut  Quantity: 1  .

    Torque  : 60Nm

  16. Reposition the tie rod. Install and tighten the new nut.

    Renew Part: Tie-rod end nut  Quantity: 1  .

    Torque  : 133Nm

  17. Reposition the brake caliper. Install and tighten the 2 new bolts.

    Renew Part: Brake caliper housing bolt(s)  Quantity: 2  .

    Torque

    Stage 1: 80Nm

    Stage 2: 60°

  18. Connect the suspension height sensor link.

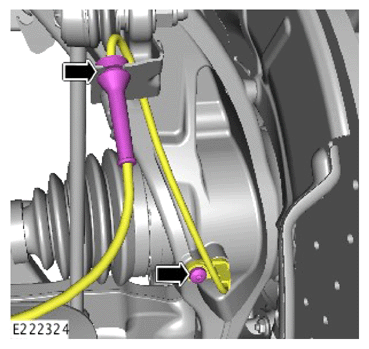

  19. G13995647Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Reposition the ABS wiring harness and secure in the retaining clip.
    • Install the ABS sensor to the wheel knuckle.
    • Install and tighten the bolt.

      Torque  : 9Nm

    • Install the brake duct.
    • Install and tighten the 5 bolts.

      Torque  : 9Nm

  21. CAUTION: Do not use air or power tools to remove or install the halfshaft nut.

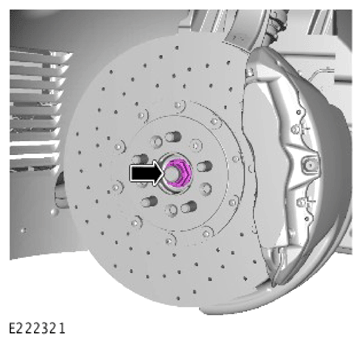

    G13995645Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Apply the foot brake and tighten the original halfshaft nut.

      Torque  : 170Nm

    • Remove and discard the original halfshaft nut.
    • Install and tighten a new halfshaft nut.

      Renew Part: Front halfshaft nut  Quantity: 1  .

      Torque

      Stage 1: 80Nm

      Stage 2: 60°

  22. Install the wheel and tire.

    Refer to: WHEEL AND TIRE - PROJECT 8
