Front Wheel Bearing And Wheel Hub - AWD (G1899480): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:
- Make sure that the mating faces are clean and free of corrosion and foreign material.
- Install new bolts.
- Install the bolts and tighten in the sequence shown.
- Make sure that all bolts are fully installed in less than 5 minutes.
Fig 1: Wheel Hub Retaining Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the wheel bearing.

Renew Part: Wheel bearing bolts Quantity: 4 .

Torque

Stage 1: 30Nm

Stage 2: 60Nm

Stage 3: 90Nm

Stage 4: 120°
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

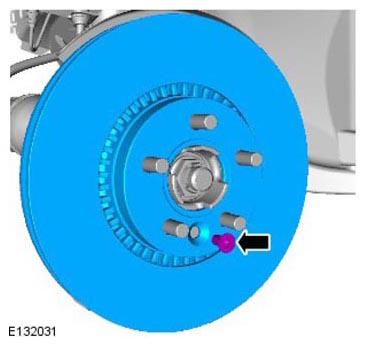

Install the brake disc.

Torque : 20Nm
CAUTION: Do not use air or power tools to remove or install the halfshaft nut.

Use the original halfshaft nut to aid installation of the halfshaft into the hub.
CAUTION: Install new bolts

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the brake caliper.

Renew Part: Brake caliper carrier bolt(s) Quantity: 2 .

Torque

Stage 1: 70Nm

Stage 2: 120°
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the brake pad sensor wire.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the wheel speed sensor.

Torque : 9Nm
CAUTION: Do not use air or power tools to remove or install the halfshaft nut.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

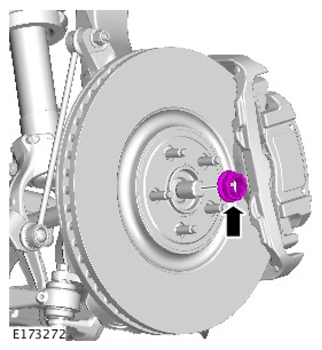

- Apply the foot brake and tighten the original halfshaft nut.
  Torque : 175Nm
- Remove and discard the original halfshaft nut.
- Install and tighten a new halfshaft nut.
  Renew Part: Front halfshaft nut Quantity: 1 .

  Torque

  Stage 1: 80Nm

  Stage 2: 60°
Install the wheel and tire.
Refer to: WHEEL AND TIRE
