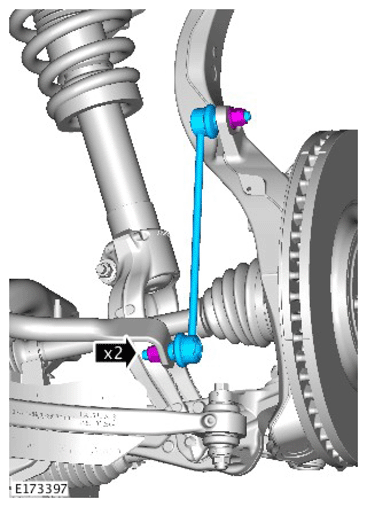

Front Stabilizer Bar Link - AWD (G2172865): Removal
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Some variation in the illustrations may occur, but the essential information is always correct.
- Some components shown removed for clarity.
- Removal steps in this procedure may contain installation details.
-
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
Raise and support the vehicle.
- Refer to: WHEEL AND TIRE
-
CAUTION: Discard the nuts.
Renew Part: Stabilizer bar link nuts Quantity: 2 .
Torque : 60Nm
