Front Stabilizer Bar Bush (G1920896): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.
Right illustration shown, Left is similar

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the wheel and tire.
Refer to: WHEEL AND TIRE
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

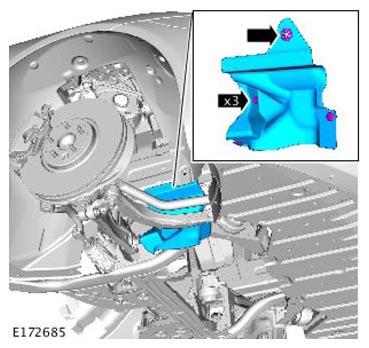

- Remove the 3 finishing panel screws.
- Remove the finishing panel clip.
- Remove the finishing panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

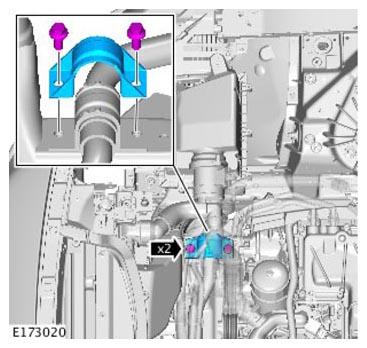

- Remove the 2 bolts.
- Remove the front stabilizer bar brackets.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

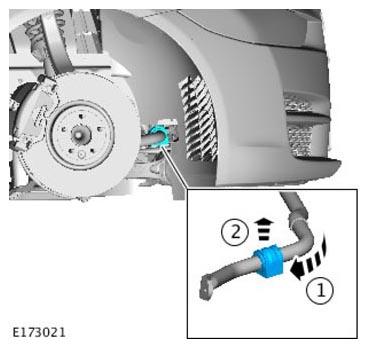

Remove the stabilizer bar bush.
Repeat the procedure for the other side of the vehicle.
