Front Stabilizer Bar - V8 S/C 5.0L Petrol, Project 8 (G2247191): Removal
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Remove the front subframe.
Refer to: FRONT SUBFRAME - V6 S/C 3.0L PETROL

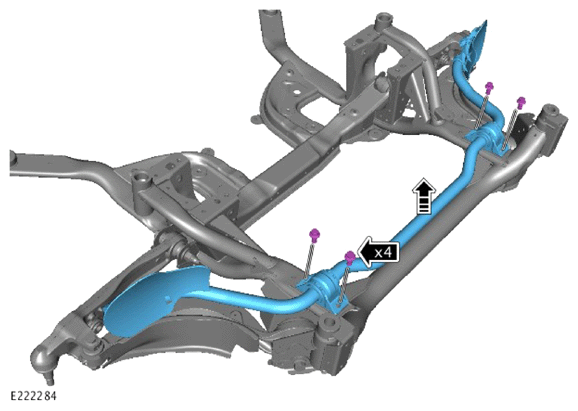

Remove the 4 stabilizer bar bracket bolts and remove the stabilizer bar assembly from the front subframe.

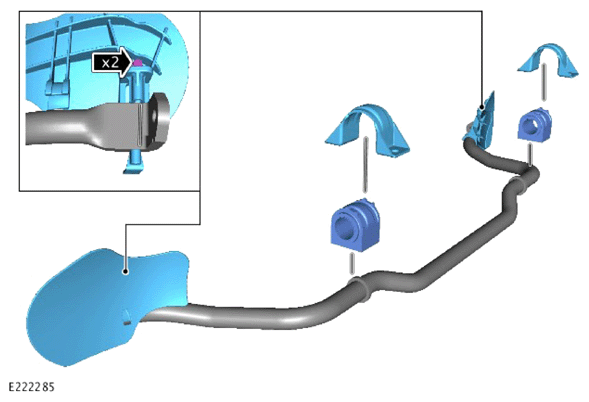

- Remove the stabilizer bar mounting brackets.
- Remove the stabilizer bar bushes.
- Remove the bolts and remove the 2 air deflectors.
