Front Stabilizer Bar - INGENIUM I4 2.0L Petrol (G1899203): Removal
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Remove the front subframe.
Refer to: FRONT SUBFRAME - INGENIUM I4 2.0L PETROL
Refer to: FRONT SUBFRAME - PROJECT 8
-
NOTE: The stabilizer bar bushes are bonded in place and do not separate from the bar.

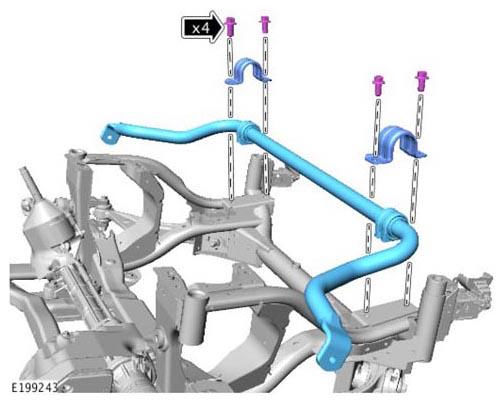

Remove the front stabilizer bar.
