Front Stabilizer Bar - INGENIUM I4 2.0L Diesel (G1920888): Removal
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Some variation in the illustrations may occur, but the essential information is always correct.
- Some components shown removed for clarity.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
- Remove the front subframe.
Refer to: FRONT SUBFRAME - INGENIUM I4 2.0L DIESEL

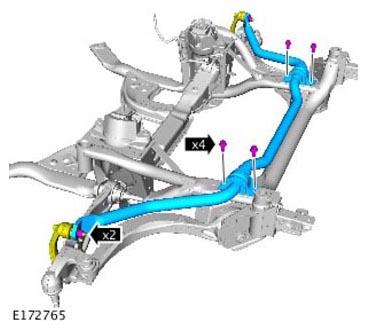

- Remove and discard the 2 nuts.
- Reposition the stabilizer bar links away from the stabilizer bar.
- Remove the 4 bolts.
- Remove the stabilizer bar.

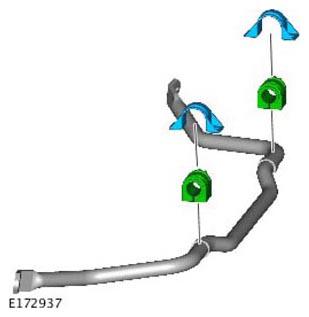

- Remove the 2 brackets.
- Remove the 2 stabilizer bar mounting rubbers.
