Front Shock Absorber - RWD (G2172864): Removal
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Nuts and bolts must be tightened with vehicle at normal ride height.
NOTE:
- Some variation in the illustrations may occur, but the essential information is always correct.
- Some components shown removed for clarity.
- Removal steps in this procedure may contain installation details.
-
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
Raise and support the vehicle.
- Remove the front wheel and tire.
Refer to: WHEEL AND TIRE
- Remove the front stabilizer bar link.
Refer to: FRONT STABILIZER BAR LINK - RWD
-
CAUTION: Discard the bolts.NOTE: Using a suitable tie strap, position and secure the component to one side.
Renew Part: Brake caliper carrier bolt(s) Quantity: 2 .
Torque
Stage 1: 70Nm
Stage 2: 120°
-
CAUTION: Discard the nut and bolt.
Renew Part: Upper control arm retaining nut and bolt Quantity: 1 .
Torque : 60Nm
-
NOTE: If equipped.
-
CAUTION: Discard the nuts.
Renew Part: Shock absorber upper mounting nuts Quantity: 3 .
Torque : 27.5Nm
-
CAUTION: Bolt must be tightened with vehicle at the normal ride height.NOTE: Do not disassemble further if the component is removed for access only.

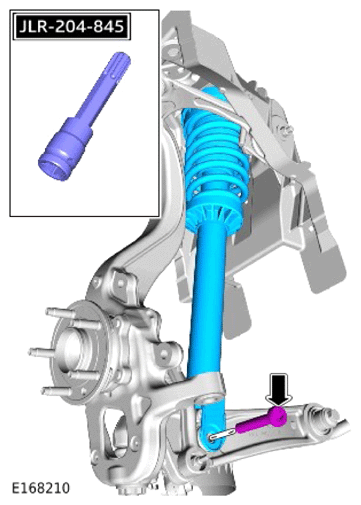

Special Tool(s): JLR-204-845
Torque
Stage 1: 60Nm
Stage 2: 120°

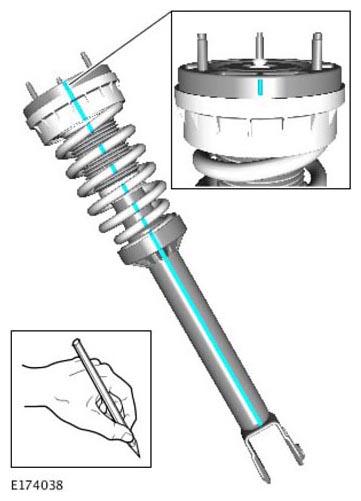

To aid reassembly, mark the fitted position of the components prior to disassembly.
-
CAUTION: Discard the nut.

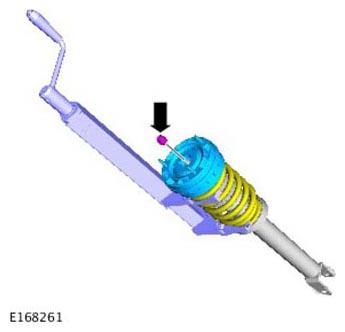

General Equipment: Suspension Spring Compressor
Renew Part: Shock absorber upper mounting nut Quantity: 1 .
Torque : 30Nm
-
NOTE: Note the orientation of the components prior to removal.

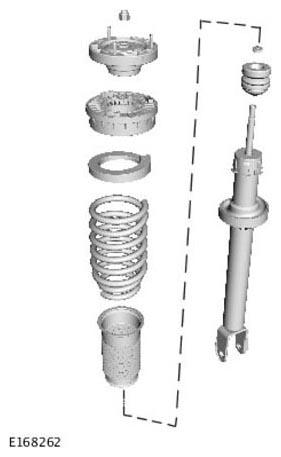

Inspect the components and renew if damaged or worn.
