Front Shock Absorber - Project 8, AWD (G2246500): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains illustrations for left side components, right side components are similar.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the wheel and tire.
Refer to: WHEEL AND TIRE
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove and discard the stabilizer bar link upper nut.
- Position the stabilizer bar link away from the wheel knuckle assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

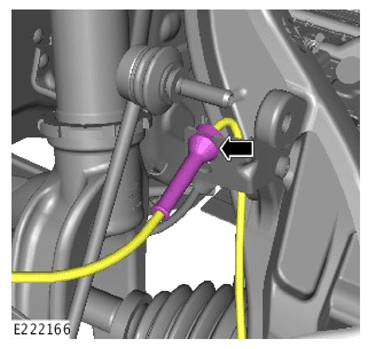

Release the Anti-lock Brake System (ABS) wiring harness and position away from the front shock absorber assembly.
NOTE: If equipped.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the suspension height sensor link.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 5 bolts and remove the duct.
CAUTION: Make sure the wheel knuckle is supported. Failure to follow these instructions may result in damage to the vehicle.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Using a transmission jack, support the wheel knuckle assembly.
  General Equipment: Transmission jack

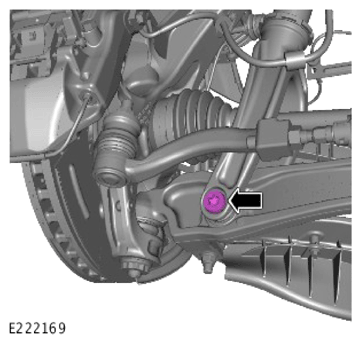

- Remove the yoke to lower control arm bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

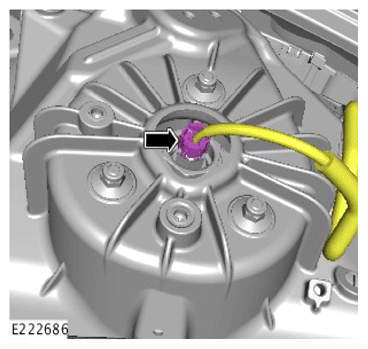

Disconnect the shock absorber electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

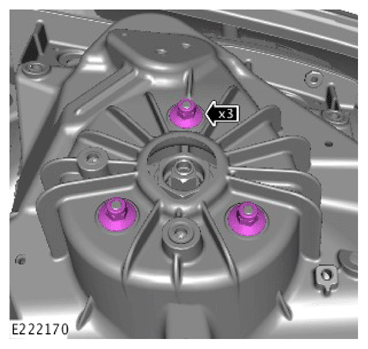

Remove and discard the 3 shock absorber upper mounting nuts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove and discard the upper control arm nut and bolt.
CAUTION: The lower arm ball joint can be damaged by excessive articulation. The wheel knuckle must be fully supported at all times. Do not allow the wheel knuckle to hang on the lower arm. Failure to follow this instruction will result in damage to vehicle.

NOTE: This step requires the aid of another technician.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

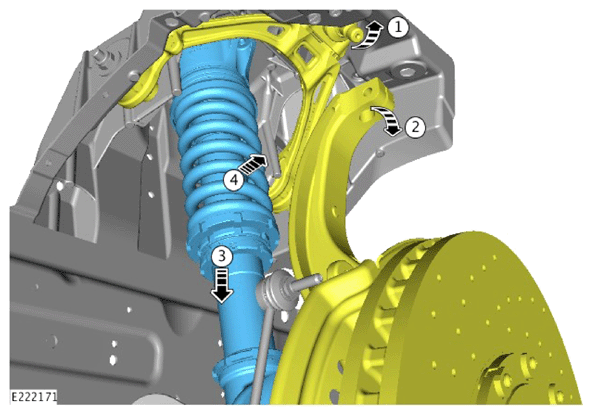

1. Release the upper control arm and position in the direction illustrated.
2. Position the knuckle assembly as illustrated.
3. Move the shock absorber assembly downwards.
4. Remove the shock absorber assembly from the vehicle.
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

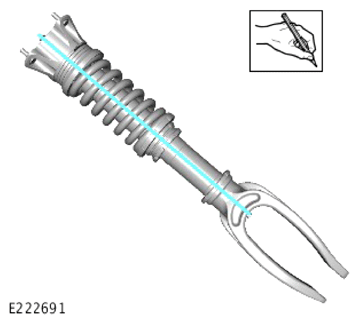

To aid reassembly, mark the installed position of the components prior to disassembly.
WARNING: Always follow the spring compressor manufacturer's instructions.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

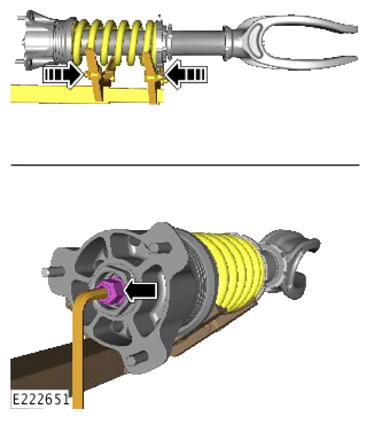

Using a suitable tool, compress the spring and remove the shock absorber nut.

General Equipment: Suspension Spring Compressor
NOTE: Note the orientation of the components prior to removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

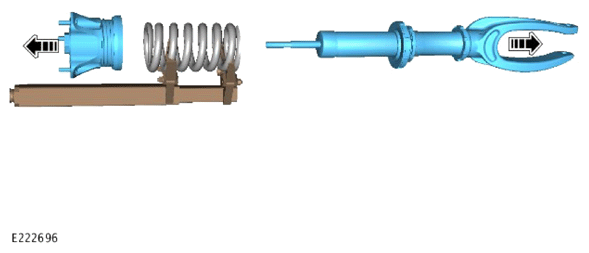

Remove the shock absorber and the upper mounting assembly from the spring.
