Wheel Knuckle And Hub
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

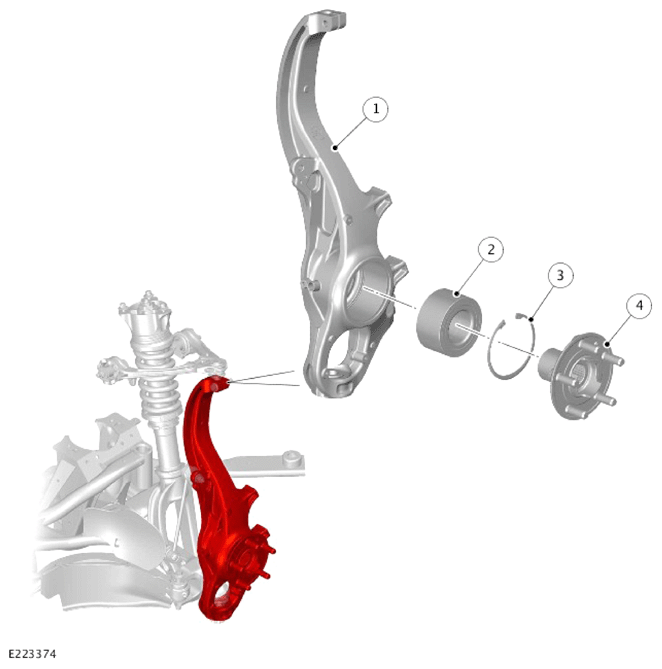

NOTE:
Left side shown, right side is similar.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Wheel knuckle |
| 2 | Wheel hub bearing |
| 3 | Circlip |
| 4 | Wheel hub |
The wheel knuckle provides the attachment for the upper control arm and the rear lower control arm. The rear lower control arm is connected via a joint integral with the rear lower control arm.
The wheel knuckle also provides the mounting locations for the following components:
- Wheel bearing
- Circlip
- Wheel hub assembly
- Wheel speed sensor
- Brake caliper
- Brake disc shield.
