Stabilizer Bar
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

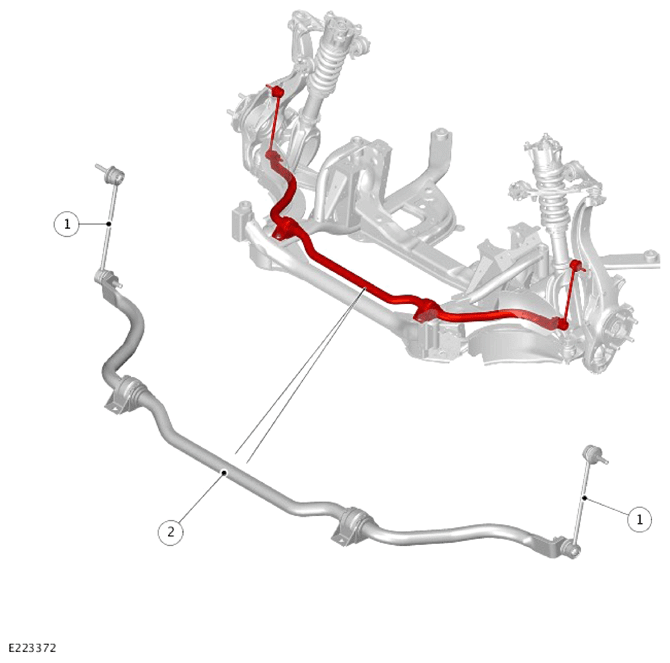

| ITEM | DESCRIPTION |
|---|---|
| 1 | Stabilizer bar link |
| 2 | Stabilizer bar |
The stabilizer bar is designed to control the amount of vehicle roll during wheel articulation. Each end of the stabilizer bar curves rearwards to connect to the stabilizer bar link. Each stabilizer bar link is secured to the wheel knuckle.
The stabilizer bar is attached to the front of the subframe with bushes and mounting brackets. The pressed steel brackets locate over the bushes and are attached to the longitudinal members with bolts screwed into threaded locations in the subframe. The stabilizer bar has crimped, 'anti-shuffle' collars pressed in position on the inside edges of the bushes. The collars prevent sideways movement of the stabilizer bar.
