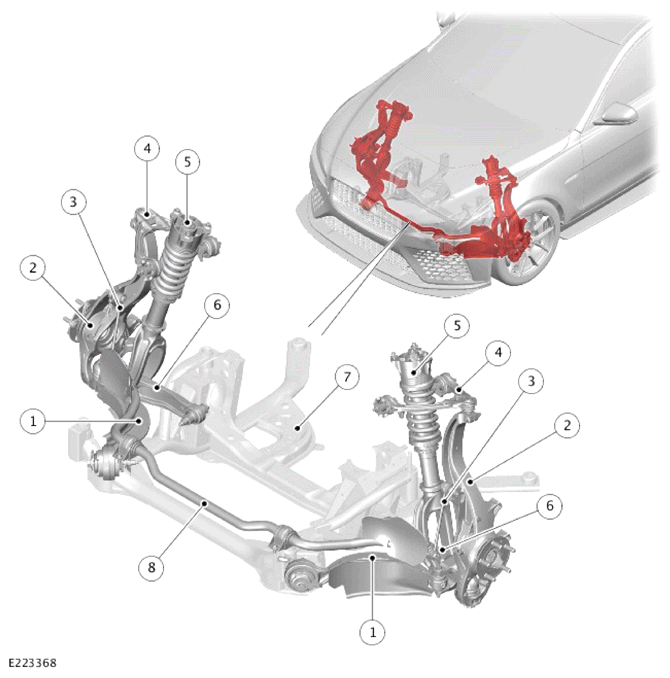

Component Location
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
Front lower control arm |
| 2 |
Wheel knuckle and wheel hub assembly |
| 3 |
Stabilizer bar link |
| 4 |
Upper control arm |
| 5 |
Shock absorber and coil spring assembly |
| 6 |
Rear lower control arm |
| 7 |
Front subframe |
| 8 |
Stabilizer bar |
