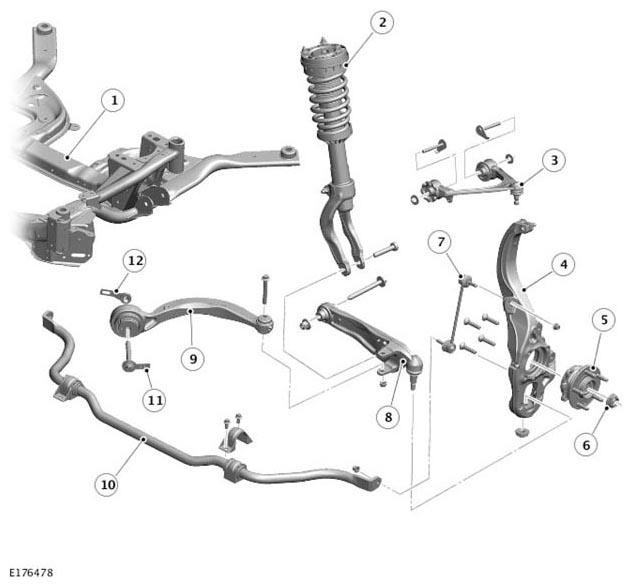

Suspension Components - All Wheel Drive Vehicles
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
Subframe |
| 2 |
Spring and shock absorber assembly |
| 3 |
Upper control arm |
| 4 |
Wheel knuckle |
| 5 |
Wheel hub and bearing assembly |
| 6 |
Hub nut |
| 7 |
Stabilizer bar link |
| 8 |
Lower lateral control arm |
| 9 |
Lower forward control arm |
| 10 |
Stabilizer bar |
| 11 |
Bolt locator clip |
| 12 |
Bolt locator clip |
