Low Pressure Exhaust Gas RECIRCULATION Temperature Sensor (G1868232): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: INTAKE AIR RESONATOR

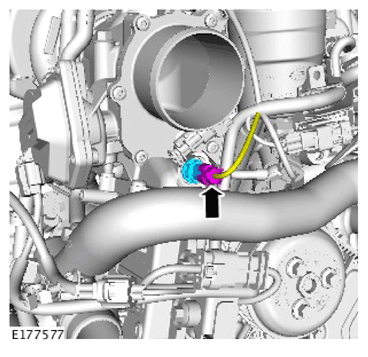

  2. G11308154Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 3.6Nm
