High Pressure Exhaust Gas RECIRCULATION Valve (G1868230): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the engine cover.
Refer to: ENGINE COVER - INGENIUM I4 2.0L DIESEL
Partially drain the cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING
NOTE: This step only applies to vehicles not fitted with a high pressure Exhaust Gas Reciculation (EGR) cooler.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

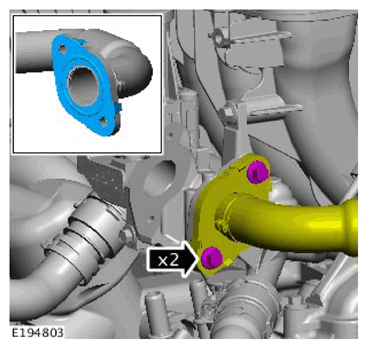

- Remove the high pressure EGR valve outlet pipe.
- Remove and discard the gasket.
- Remove and discard the O-ring seal.
NOTE: This step only applies to vehicles fitted with a high pressure Exhaust gas Recirculation (EGR) cooler.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

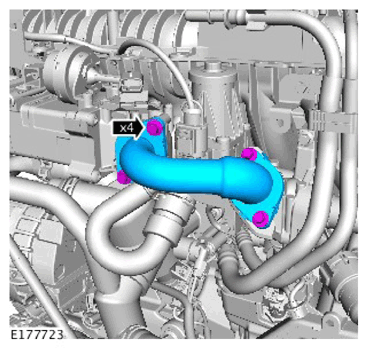

- Remove the high pressure EGR valve outlet pipe.
- Remove and discard the gaskets.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the electrical connector.
CAUTION: Be prepared to collect escaping coolant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

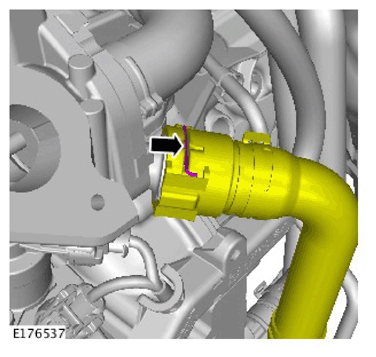

Disconnect the coolant hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the EGR inlet pipe.
- Discard the gasket.
CAUTION: Be prepared to collect escaping coolant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

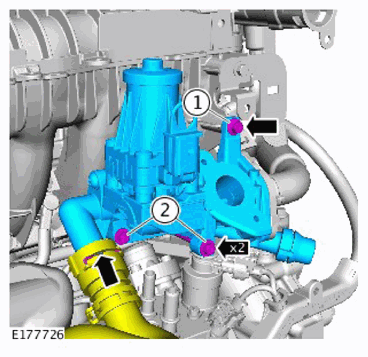

- Disconnect the coolant hose.
- Remove the EGR valve.
