High Pressure Exhaust Gas RECIRCULATION Cooler (G1868231): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.
To install, reverse the removal sequence.

WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: ENGINE COVER - INGENIUM I4 2.0L DIESEL
Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING
Refer to: COOLANT EXPANSION TANK
Refer to: DIESEL FUEL SYSTEM HEALTH AND SAFETY PRECAUTIONS
CAUTION:
- Be prepared to collect escaping fuel.
- Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

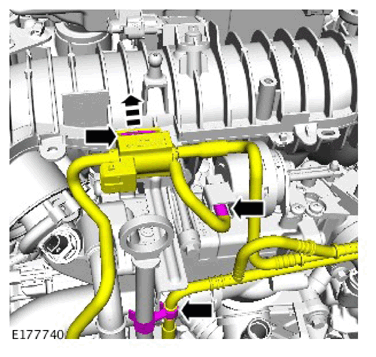

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Be prepared to collect escaping coolant.

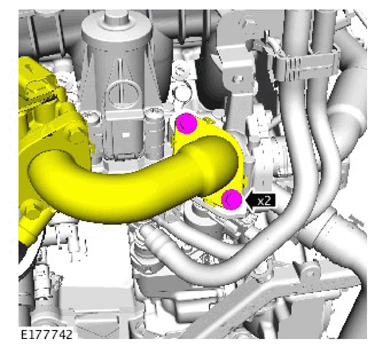

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Be prepared to collect escaping coolant.

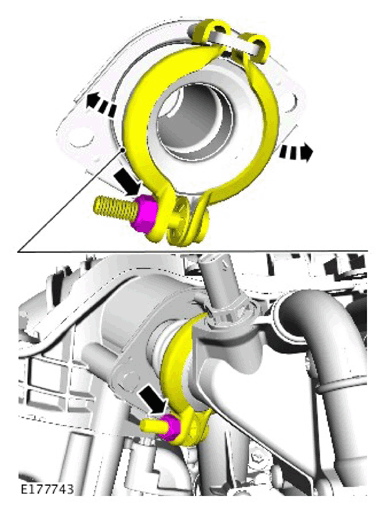

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

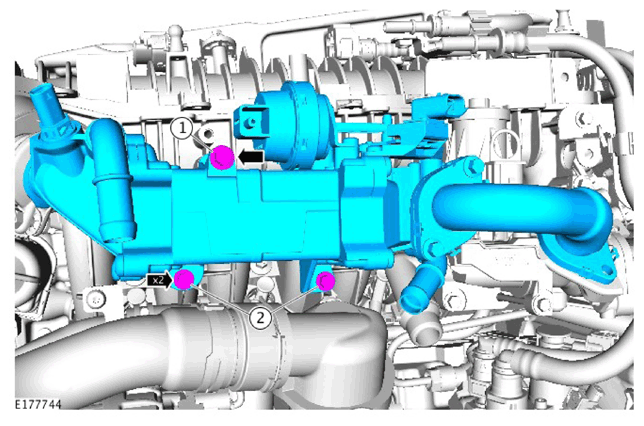

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

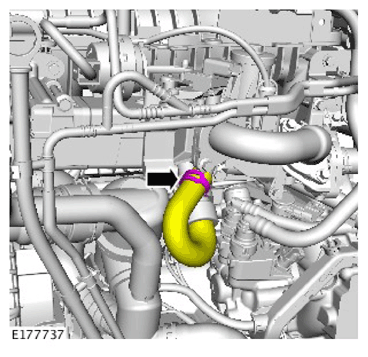

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

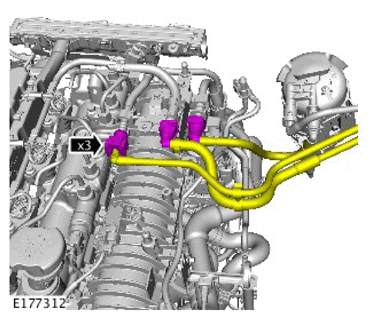

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 7Nm

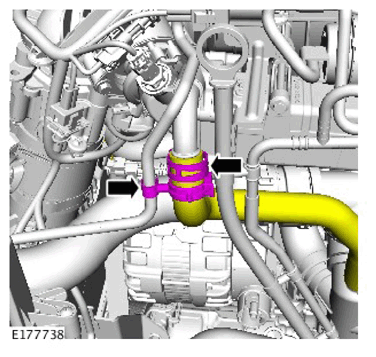

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 12Nm

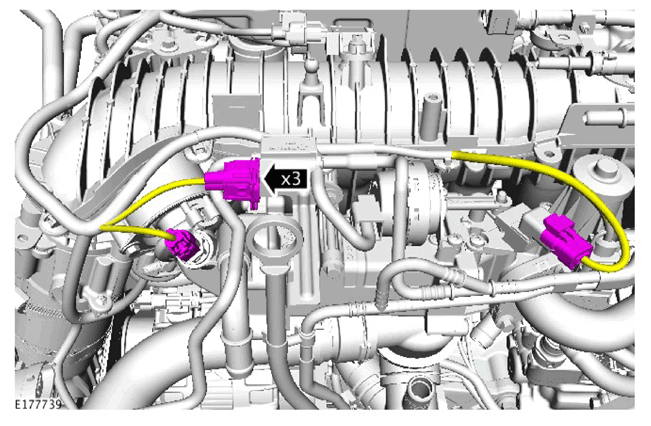

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 4Nm
CAUTION: Install a new gasket.

NOTE: Do not disassemble further if the component is removed for access only.

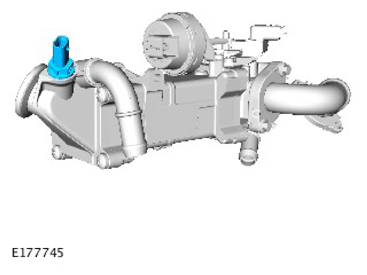

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: EGR cooler to EGR valve gasket Quantity: 1.

Torque

1: 12Nm

2: 7Nm

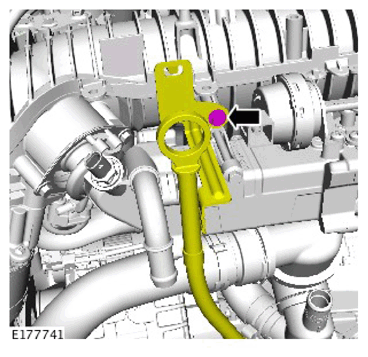

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 3.6Nm
