Diesel Exhaust Fluid Tank (G1867853): Removal
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
-
WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
- Refer to: DIESEL EXHAUST FLUID TANK DRAIN AND REFILL
-
NOTE: Right illustration shown, left is similar.

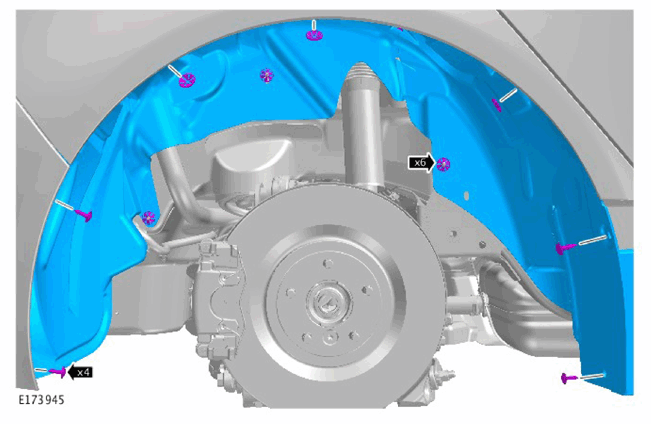

Access through the rear left wheel arch.
- Refer to: DIESEL EXHAUST FLUID FILLER ASSEMBLY
-

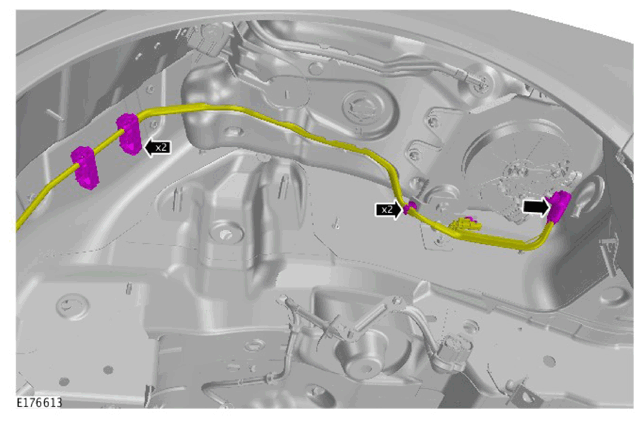

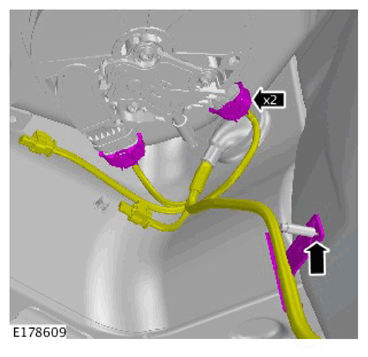

CAUTION: Make sure that all disconnected electrical connectors and sockets are sealed.NOTE: Disconnect the components in the sequence shown.
The quick connector is pushed in an axial direction onto the SAE spigot, until you hear a audible click.

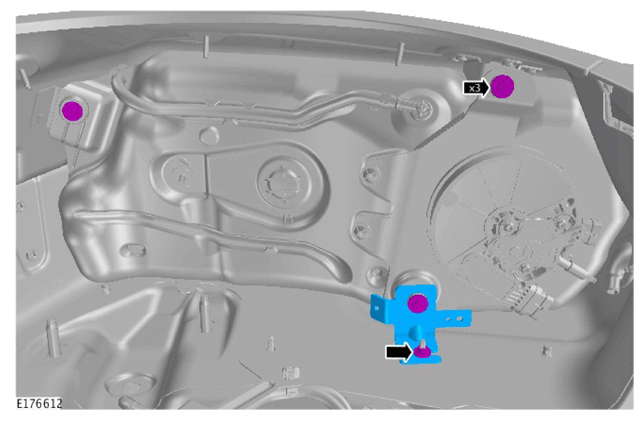

Torque : 7Nm
