Diesel Exhaust Fluid Pipe (G1867854): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Some components shown removed for clarity.
Some variation in the illustrations may occur, but the essential information is always correct.
Removal steps in this procedure may contain installation details.

WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: DIESEL EXHAUST FLUID TANK DRAIN AND REFILL
Refer to: FUEL TANK
CAUTION:
- Be prepared to collect escaping fluid.
- Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
- Make sure that all disconnected electrical connectors and sockets are sealed.

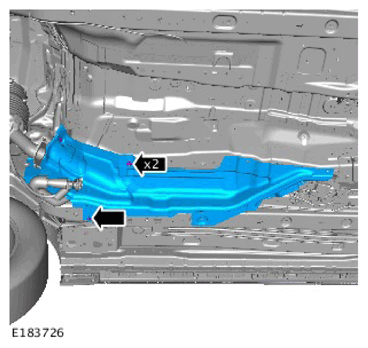

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

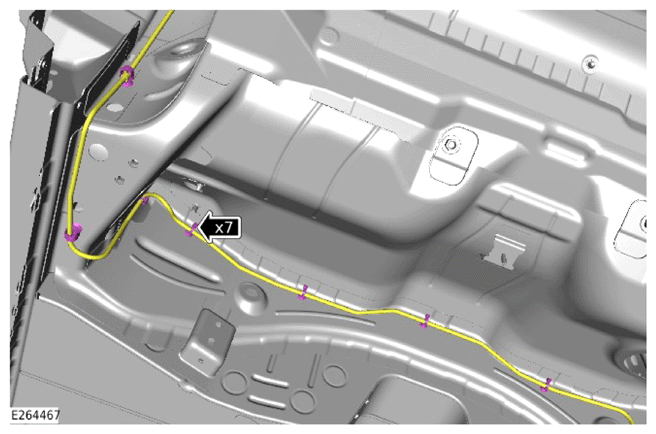

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

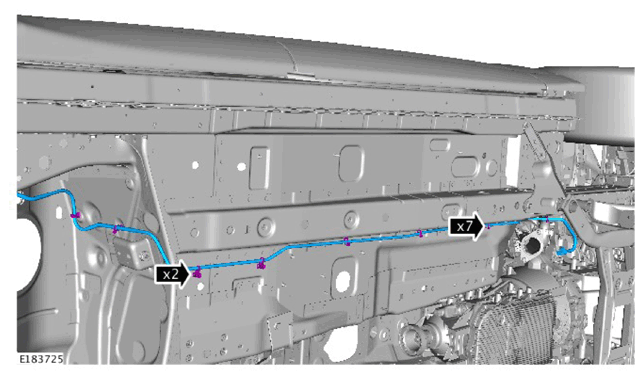

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION:
- Be prepared to collect escaping fluids.
- Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
- Make sure that all disconnected electrical connectors and sockets are sealed.

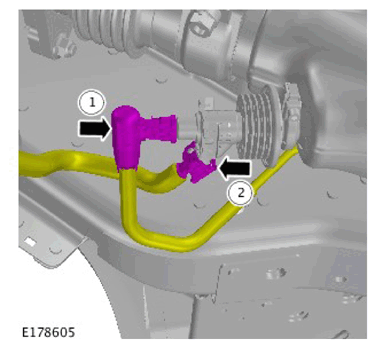

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The quick connector is pushed in an axial direction onto the SAE spigot, until you hear a audible click.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
