Diesel Exhaust Fluid Injector (G1862900): Installation

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install a new gasket to the DEF injector.
  Renew Part: Diesel exhaust fluid injector refit kit Quantity: 1.

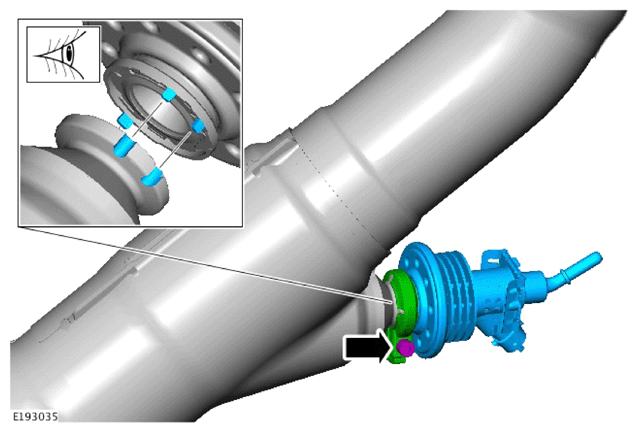

- Install the DEF injector.
- Install and tighten the clamp.
  Torque : 5Nm
- Connect the DEF injector electrical connector.
- Reposition the DEF injector electrical connector cover.
- Connect the DEF injector supply pipe.
- Reposition the DEF injector supply pipe heatshield.
NOTE: SRO to be claimed separately.
- Connect the Jaguar Land Rover (JLR) approved diagnostic equipment.
  General Equipment: Jaguar Land Rover approved diagnostic equipment
- Select 'Powertrain - Diesel Exhaust Fluid Prime and Pressure Test' from the diagnostic menu.
- Make sure that all steps from the on-screen instructions are followed.
