Diesel Exhaust Fluid Injection Pump (G1937371): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.
Some components shown removed for clarity.

WARNING: Make sure to support the vehicle with axle stands.

Raise and support the vehicle.
Refer to: DIESEL EXHAUST FLUID TANK DRAIN AND REFILL
WARNING: Be prepared to collect escaping fluid.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Make sure that all disconnected electrical connectors and sockets are sealed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

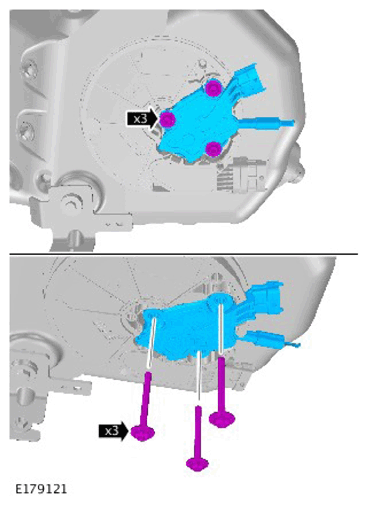

CAUTION: Discard the bolts.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
WARNING: Be prepared to collect escaping fluid.

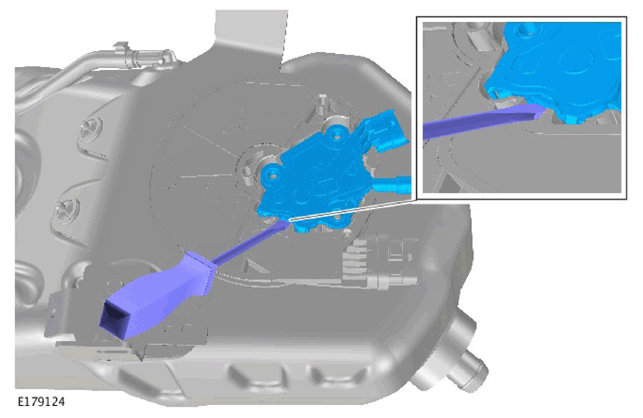

CAUTION: Do not use excessive force to remove the component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Using a suitable tool, remove the seals.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

If a new pump is being installed this step is not required.
CAUTION: Discard the components.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

If a new pump is being installed this step is not required.
CAUTION:
- Using a suitable tool, remove the seals.
- Discard the components.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

If a new pump is being installed this step is not required.
