Diesel Exhaust Fluid Injection Pump (G1937371): Installation

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:
- Lubricate seals with deionized water.
- Make sure that the components are clean, dry and free from corrosion and foreign material.
NOTE: Install new seals.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

If a new pump is being installed this step is not required.

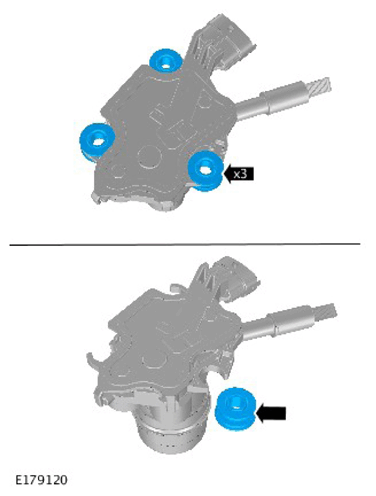

CAUTION: Make sure that new components are installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

If a new pump is being installed this step is not required.

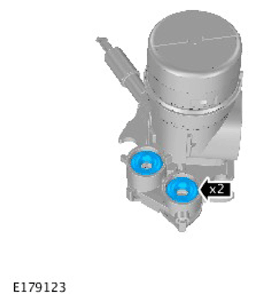

Renew Part: Sleeve and isolator assemblies Quantity: 1.

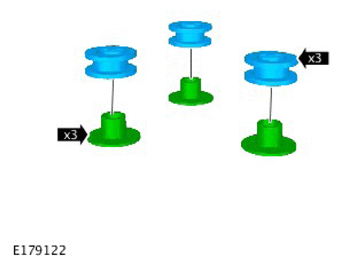

CAUTION: Install the new sleeves and isolators to the Diesel Exhaust Fluid pump.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

If a new pump is being installed this step is not required.
CAUTION:

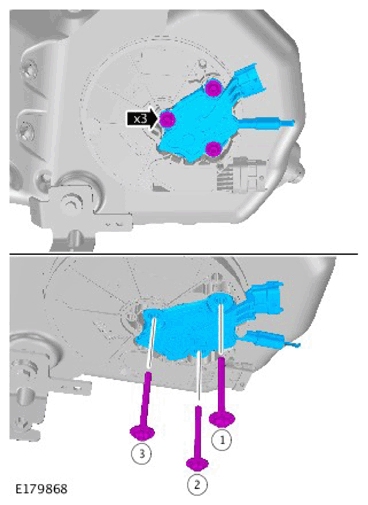

- Make sure that new bolts are installed.
- The bolts must be re-torqued after 2 minutes.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: Diesel exhaust fluid injection pump bolts Quantity: 1.

Torque : 6Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

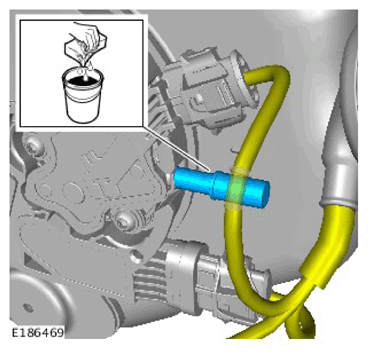

CAUTION: Lubricate with deionized water.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

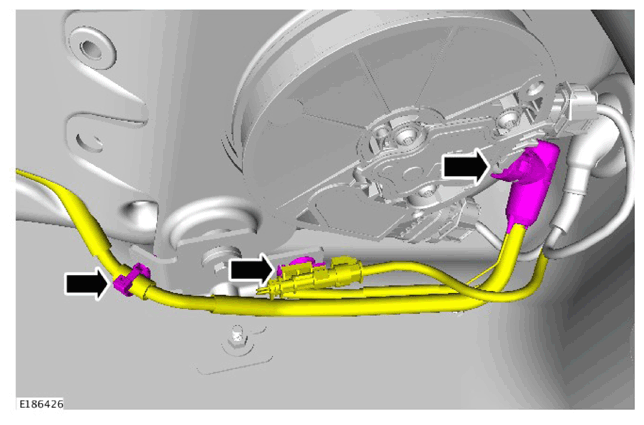

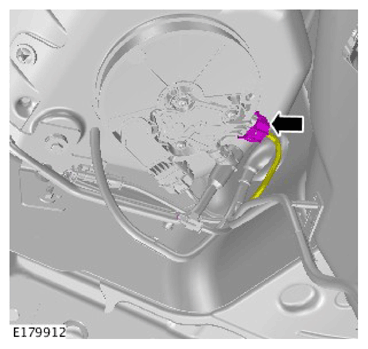

The quick connector is pushed in an axial direction onto the SAE spigot, until you hear a audible click.
NOTE: This step is only required if a new component is installed.
- Connect the Jaguar Land Rover (JLR) approved diagnostic equipment.
  General Equipment: Jaguar Land Rover approved diagnostic equipment
- Select 'Powertrain - Diesel exhaust fluid injection pump replacement' from the diagnostic menu.
- Make sure that all steps from the on-screen instructions are followed.
Refer to: DIESEL EXHAUST FLUID TANK DRAIN AND REFILL
