Diesel Exhaust Fluid Filler Assembly (G1862901): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: DIESEL EXHAUST FLUID TANK DRAIN AND REFILL
  3. Refer to: LUGGAGE COMPARTMENT LEFT TRIM PANEL

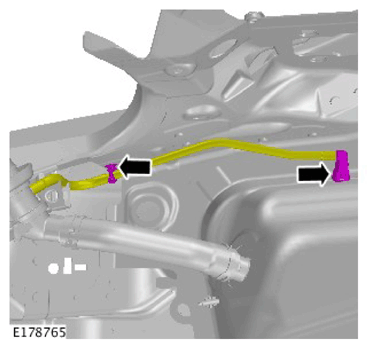

  4. G11308108Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

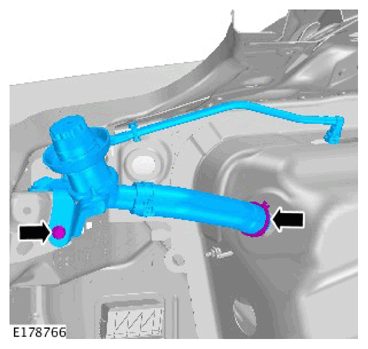

  5. G11308109Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 7Nm

  6. NOTE: Do not disassemble further if removed for access only.

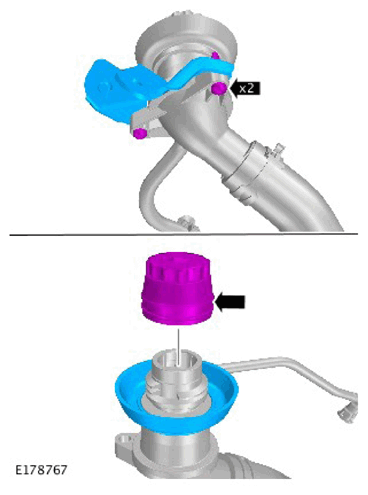

    G11308110Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 6Nm
