Diesel Exhaust Fluid Tank Drain And Refill (G1862899): Draining

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Extreme cleanliness must be exercised when handling these components.

NOTE:

Make sure to add 1 liter of fluid to the upper tank and drain it through the clear hose, if the Diesel Exhaust Fluid (DEF) dispensing kit is being used for the first time.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustration showing certain components removed to provide extra clarity.

The following step(s) applies to:

All vehicles

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

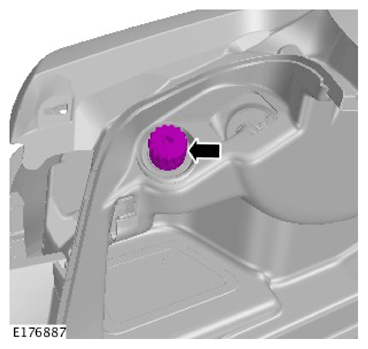

Remove the DEF filler cap.
Remove the left rear wheel and tire.
Refer to: WHEEL AND TIRE
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 4 bolts and 6 retaining clips.
- Remove the splash shield.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

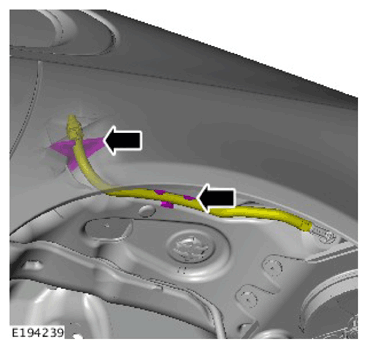

Remove the drain tube from the 2 retaining clips.
WARNING: Be prepared to catch escaping fluid.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Allow the DEF to drain into a suitable container.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

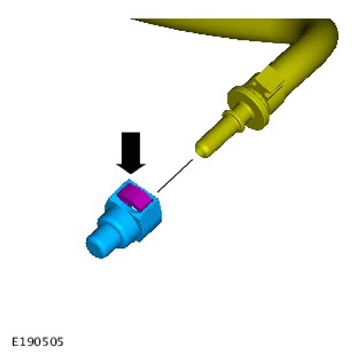

Install the blanking cap.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the drain tube into the retaining clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the 4 bolts and 6 retaining clips.
- Install the splash shield.
The following step(s) applies to:

All vehicles
Install the left rear wheel and tire.
Refer to: WHEEL AND TIRE
