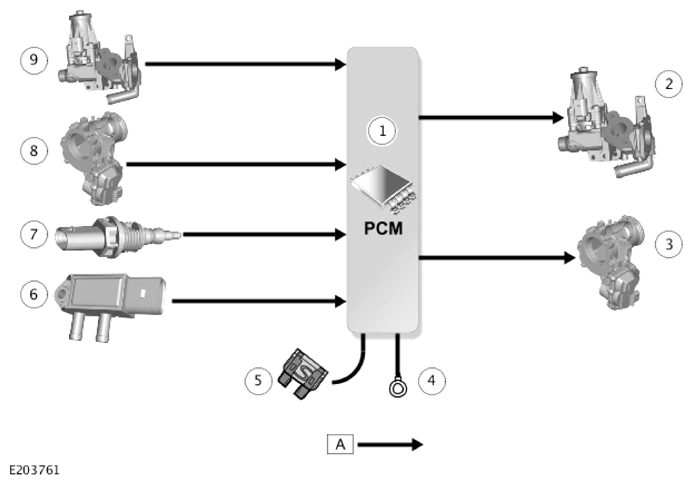

Control Diagram
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | High Pressure (HP) Exhaust Gas Recirculation (EGR) valve motor and actuator |
| 3 | Low Pressure (LP) EGR valve motor |
| 4 | Ground |
| 5 | Power supply |
| 6 | Differential pressure sensor |
| 7 | LP EGR temperature sensor |
| 8 | LP EGR valve - Position sensor |
| 9 | HP EGR valve - Position sensor |
