Component Location - 2 Of 3 - Exhaust Gas RECIRCULATION - EU5 Market Vehicles
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

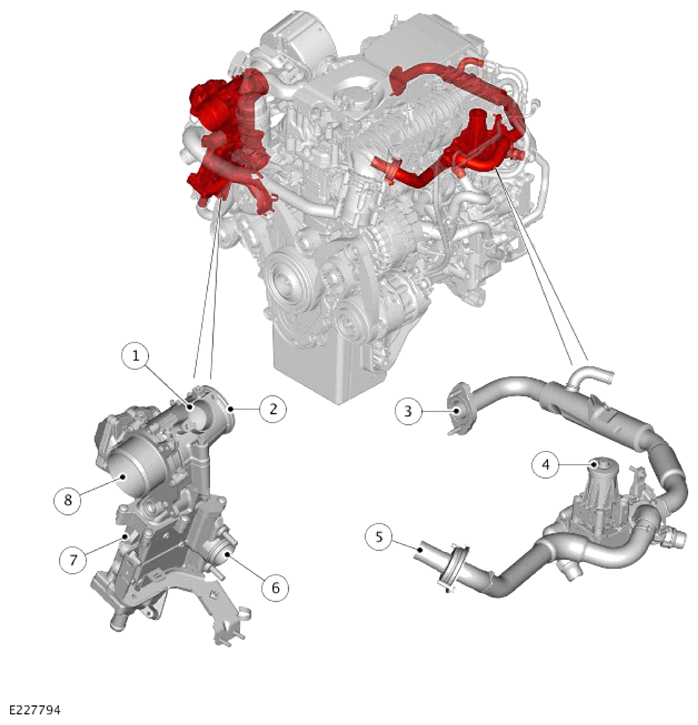

| ITEM | DESCRIPTION |
|---|---|
| 1 | Breather pipe inlet from engine vent oil separator |
| 2 | Pipe into the turbocharger |
| 3 | High Pressure (HP) Exhaust Gas Recirculation (EGR) pipe from exhaust manifold |
| 4 | HP EGR valve motor and actuator |
| 5 | HP EGR outlet |
| 6 | Engine coolant connection with cylinder block |
| 7 | Low Pressure (LP) EGR cooler |
| 8 | LP EGR Valve |
