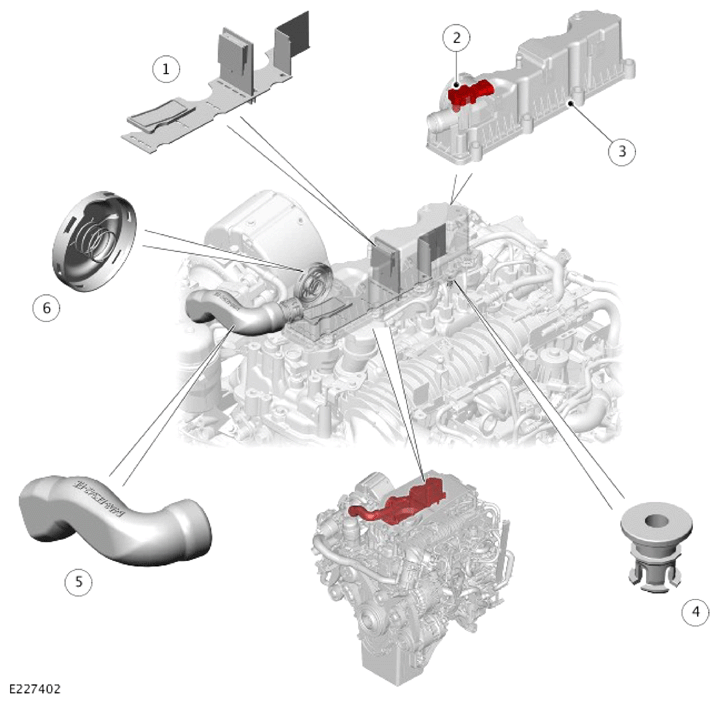

Component Location - 1 Of 3 - Crankcase Emissions
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
Positive crankcase ventilation baffle plate |
| 2 |
Crankcase vent pressure sensor - North American Specification (NAS) market and EU6d market vehicles only |
| 3 |
Engine vent oil separator |
| 4 |
Oil drain valve |
| 5 |
Breather pipe |
| 6 |
Positive crankcase ventilation valve |
